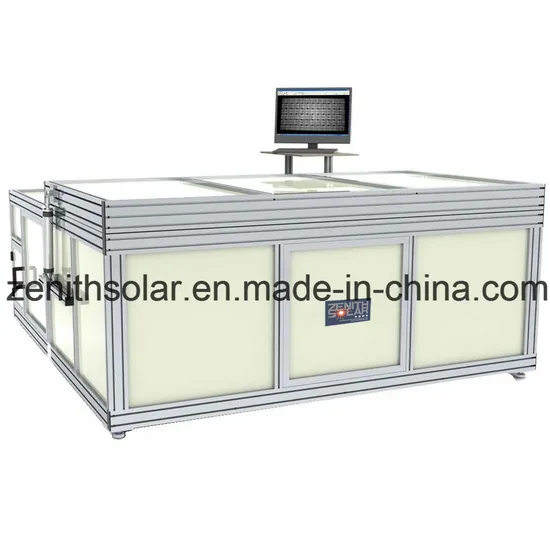

Solar Panel Module Crack Test PV Production Line Equipment EL Tester with Solar Cell

Product Description

1,Product Introduction
Solar cell module in the slice, diffusion, welding,
laminating, framing and other processes may cause
process contamination, hiding cracked, debris, brokenfences,
low efficiency and so on; the invisible defects will affect the conversion efficiency, shorten working life, reduce the quality of brand, impact corporate reputation and cause huge losses to the enterprise.
2,Technical specifications:
Resolution:1608×104 pixels(4928x3264) Clear imaging time:5-30s Test cycle: 20~30s
Detector manufacturers: German OEM, the United States KODAK chip
Detector Type : Cooled type,(-10 ) ºC Image surface noise : No
Management software : Independently developed recognition and management software in Chinese and English, the image can be automatically saved,statistics, query and print
Detection of defect types: Process contamination, material defects, hiding cracked, debris,broken gate, low efficiency
Automation degree : Manual handling modules, manual up/down power, manual scan bar codes. Cylinder up/down switch cover
Module type detect : Solar cell module / cell strings (single crystal and polycrystalline)
Module size detection : Standard size: 2000mmx1000mm (Can be customized according to customer special requirements)
Cabinet dimensions : 2200mm(Long)x1800mm(Wide)x900mm(High)
Test Platform Height : 900mm
Test voltage : 0~100V
Equipment working environment : 15ºC~40ºC(Temperature);20~60% (Humidity)
Equipment placement environment :5ºC~40 ( ºC Temperature);5~85%(Humidity)

---
