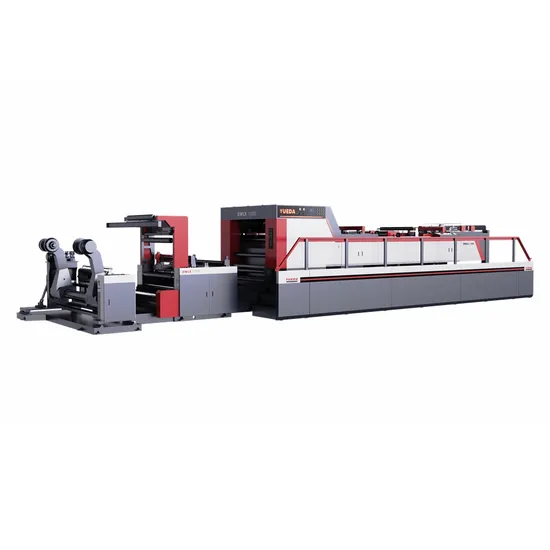

High Speed High Accuracy Double Rotary Sheet Cutter Machine Lxd1300

Product Description

Product Description This machine is suitable for cutting high-end packaging materials such as cat eye positioning cardboard, cigarette packaging cardboard, wine box packaging cardboard, aluminum foil cardboard, cosmetics cardboard, etc. This machine has functions such as hydraulic non axis correction and unwinding, automatic tension, automatic stop when the coil diameter is in place, automatic stop when running, automatic waste discharge, automatic traction, tracking error display, extreme automatic stop, adjustable inclination angle, automatic stacking, high-performance synchronous servo traction, high-precision synchronous serving cutting, German imported photoelectric detection, and automatic marking, cutting, and drawing lines.
The whole machine adopts Ether-cat communication bus, high-definition human-machine interface and high-efficiency PLC, with synchronous control before and after the machine. It has the advantages of high precision of cutting and drawing lines, no scratches on the surface of the paper, no need for edge trimming for printing after cutting, less paper powder, easy operation, stable operation, and high degree of automation. This machine is easy to inspect and operate, with less waste and error compared to similar products. It is the preferred choice for customers and brings you a competitive advantage in the market.
Detailed Photos
Product Parameters

Model	LXD1300
Model of cutting paper	Double rotary
Max. Paper cutting width	400-1200mm
Cutting length range	450-1400mm
Max.roll diameter	1650mm
Winding web	1 webs
Reference weight of paper	≤550gsm
Cutting speed	10-400sheet/min
Cutting times	≤300m/min
Cutting currency	±0.1mm
Pile height	1400mm
Air request	0.8Mpa
Total power	100kw
Overall dimension	14700x4700x2620mm
Total weight	17000kgs
