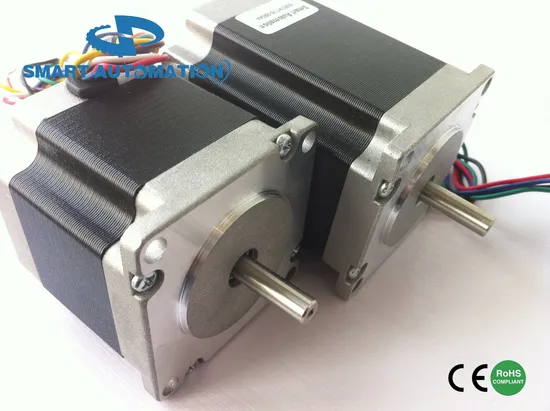

NEMA 23 57mm 2 Phase Stepper Motor, Linear and Geared Version Available

US$7.00-24.00 100 Pieces (MOQ)

Basic Info.

Model NO.
SM57HT--series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Type
Magnetic-Electric
Certification
ISO9001, RoHS&Ce
Brand
Smart Automation
Shaft Type
Customized
Holding Torque
Customized
Current
Customized
Transport Package
Standard Export Package
Specification
57mm
Trademark
Smart Automation
Origin
China
HS Code
8501109990
Production Capacity
50000 PCS Per Month

Product Description

1.8° Nema 23, Size 57mm High Torque Hybrid Stepping Motor 1.8 degree


Model No. Rated
Voltage		 Current
/Phase		 Resistance
/Phase		 Inductance
/Phase		 Holding
Torque		 # of Leads Rotor
Inertia		 Weight Detent
Torque		 Length
Single Shaft Double Shaft V A Ω mH kg-cm g-cm2 kg kg-cm mm
SM57HT41-1006A SM57HT41-1006B 5.7 1 5.7 5.4 3.9 6 120 0.45 0.21 41
SM57HT41-2006A SM57HT41-2006B 2.8 2 1.4 1.4 3.9 6
SM57HT41-3006A SM57HT41-3006B 1.9 3 0.63 0.6 3.9 6
SM57HT41-2804A SM57HT41-2804B 2 2.8 0.7 1.4 5.5 4
SM57HT51-1006A SM57HT51-1006B 6.6 1 6.6 8.2 7.2 6 275 0.65 0.36 51
SM57HT51-2006A SM57HT51-2006B 3.3 2 1.65 2.2 7.2 6
SM57HT51-3006A SM57HT51-3006B 2.2 3 0.74 0.9 7.2 6
SM57HT51-2804A SM57HT51-2804B 2.3 2.8 0.83 2.2 10.1 4
SM57HT56-1006A SM57HT56-1006B 7.4 1 7.4 10 9.0 6 300 0.7 0.4 56
SM57HT56-2006A SM57HT56-2006B 3.6 2 1.8 2.5 9.0 6
SM57HT56-3006A SM57HT56-3006B 2.3 3 0.75 1.1 9.0 6
SM57HT56-2804A SM57HT56-2804B 2.5 2.8 0.9 2.5 12.6 4
SM57HT64-2006A SM57HT64-2006B 3.6 2 1.8 2.5 10.5 6 380 0.85 0.5 64
SM57HT64-3004A SM57HT64-3004B 2.4 3 0.8 2.3 15.0 4 380 0.85 0.5 64
SM57HT76-1006A SM57HT76-1006B 8.6 1 8.6 14 13.5 6 480 1 0.68 76
SM57HT76-2006A SM57HT76-2006B 4.5 2 2.25 3.6 13.5 6
SM57HT76-3006A SM57HT76-3006B 3 3 1 1.6 13.5 6
SM57HT76-2804A SM57HT76-2804B 3.2 2.8 1.13 3.6 18.9 4
SM57HT82- 3004A SM57HT82- 3004B 3.6 3 1.2 4 22 4 600 1.2 1 82
SM57HT82- 5004A SM57HT82-5004 B 3 5 0.6 1.5 22 4
SM57HT112-3004 A SM57HT112- 3004B 4.8 3 1.6 6.8 28 4 800 1.4 1.2 112
SM57HT112-4204 A SM57HT112- 4204B 3.8 4.2 0.9 3.8 28 4
