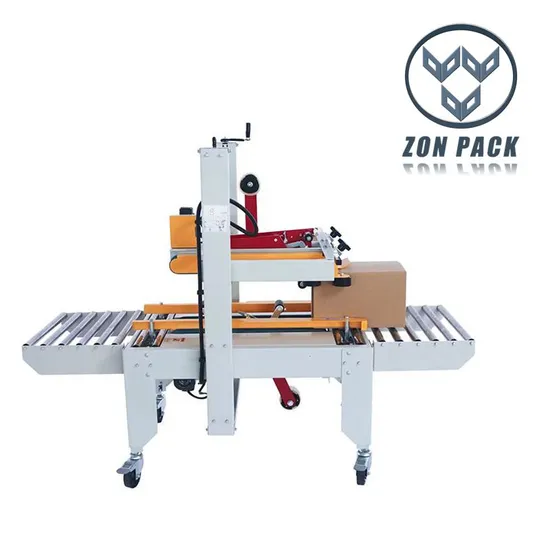

Automatic Sealing Machine Taping Flap Folding Box Case Sealer for Packing Line

Product Description

Product Description Automatic carton sealer machine with adhesive tape will extremely speed up the packing process of boxes and cartons and other packages. The automatic carton sealer machine automates the process of gluing the tape to the top and bottom of the box.The productivity of the packaging increases, the number of packed boxes per minute usually increases by several times. An automatic carton closing sealer machine with adhesive tape is easy to use and can be operated by a person without prior professional training.ApplicationThis cartoon sealing machine is widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
Product Parameters

Technical Specification
Model		ZH-GPA-50	ZH-GPC-50	ZH- GPE-50P
Convying Speed		18m/min	18m/min	18m/min
Carton Range		L:150mm W:150-500mm H:120-500mm	L:200-600mm W:150-500mm H:150-500mm	L:150mm W:180-500mm H:150-500mm
Voltage Power		240W 110/220V 50/60HZ 1 Phase
Tape Size		48/60/75mm
Mesa Height		600mm+150mm
Machine dimensions		L:1020mm W:850mm H:1350mm(Excluding front and rear roller frames)	L:1770mm W:850mm H:1520mm	L:1020mm W: 900mm H:1350mm
Weight		130kg	270kg	140kg

Technical Feature

1.Suitable for cartons. The left and right drive sealing machine specially developed for large cartons can solve the problems of carton bending and adhesive paper sticking skew.

2. Flexible expansion: can be single operation can also be used with automatic packaging line

3.Automatic adjustment:The width and height of the carton can be adjusted manually or automatically according to the carton specifications, which is convenient and fast;

4.Save manual:goods packaging work by machines instead of manual completion;

5.Improve efficiency: stable sealing speed, higher efficiency;

6.The machine is equipped with safety protection measures,operation more assured.

Detailed Photos
1.Adjustable device
The width and height can be adjusted according to the carton specifications,which is convenient and fast.2.Quick load tape designThe tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in
just a few seconds, and the operation is simple. 3.Stable and durableSelected powerful motor to ensure stable and smooth peration of the whole machine4. Durable switch buttonUse cost-effective power switches,and the service life of key switches can reach 100,000 times.5.Stainless steel rollerGood bearing capacity,durable, no rust. Tips What's The Difference Between Carton Sealer And Carton Erector?1.Carton sealerIt folds the flaps and seals the top and bottom of your boxes.2.Carton erectorIt shapes up the box, folds the bottom flaps and seals them.
They can be used in combination with roller conveyor
Packaging & ShippingTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient wooden case packaging services will be provided.
FAQQ :Can your machine meet our needs well, how to choose the packing machines ?Just lick on the chat box to contact me directly , I will help you choose the most suitable machines and send you more detailed information.Q :How long of the warranty period?
Whole machine 1 year. In warranty period, We will send the part free to replace the one that is broken.
Q :What's the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q :Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country
and round-trip air tickets. The compensation for engineer is 100USD/DAY.
Q :Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.

---
