CNC Centerless Grinder Machine M200 Working Dia. 5-100mm

Product Description

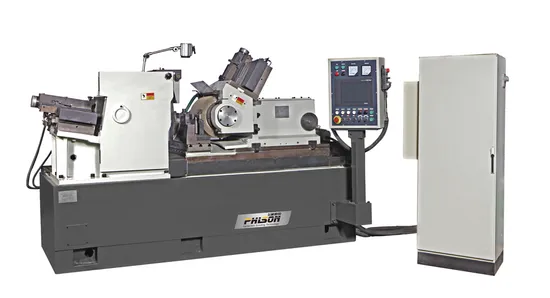

HCGM-M200 High Precision CNC/PLC Centerless Grinder 1.Salient features:
1.1.Grinding wheel and Regulating wheel
1.1.1The diameter of grinding wheel is 600mm, with strong grinding force.
1.1.2.The wide grinding wheel can increase the grinding allowance in a single pass, and Decrease repeating, to raise efficiency.
1.1.3.The grinder designed for fixed grinding wheel and movable regulating wheel.
1.1.4.The spindles of grinding wheel adopted double support & muti-plate ball support Dynamic oil film bearing.
1.1.5.The spindles of regulating wheel adopted double row cylindrical roller bearing, with Double supported wheel.
1.1.6.The regulating wheel feed slide is equipped high rigidity linear guideway and Servomotor that drives ball screws.
1.2.Lubrication
1.2.1.Lubrication of grinding wheel spindle with thermostat.
1.3.Electric
1.3.1.AC frequency converter is used for regulating wheel stepless speed control, as well As reverse towing prevent function.
1.4.Dressing
1.4.1.Servo motor drives the ball screw & double "V" roller guideway can be adopted on Grinding wheel dresser feeding.
1.4.2.Gear motor driven the ball screw & double "V" roller guideway are adopted on Regulating wheel, step-less speed.
1.5.Cooling system
1.5.1.The coolant system is equipped with magnetic coolant separator.
1.6.1.10.4" touch panel, automatic plunge-cut grinding, the load, speed, time and step level Adjustable
1.6.2.PLC or CNC system optional, three axes.
1.7.Machine body and design
1.7.1.The modularization design has good looking.Its configuration can be selected as Client needs.
1.7.2.Iron casting with high rigidity, natural aging.
2.Main configuration

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q	1	set	Mitsubishi
Servo motor		1	set	Mitsubishi
Operation display screen	10'	1	set	Mitsubishi
Ball screw		3	sets	Nanjing
Converter for RW		1	pc	Mitsubishi
RW motor		1	pc	ABB
GW motor		1	pc	Wannan
low-voltage apparatus		1	set	Schneider
Proximity switch		1	set	AUTONICS
Paper filter with magnetic separator		1	set	Ruichuang
Balancing for GW		1	set	PHISIONG

3.Technical Data

		1 Axis
In-feed Grinding	Dia.	10-200mm
	Length	390mm
Through grinding	Dia.	10-200mm
GW SPEC. (O.D.*width*I.D.)		600*200max250*305mm
RW SPEC.(O.D.*width*I.D.)		350*200max250*203mm
GW Speed		1100r/min
RW Speed (stepless)		10-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	-1°~ +3°
GW min feeding amount		0.001mm
GW dresser min feeding amount		0.01mm
Height from center line of GW & RW to work rest		200mm
Cooling water flow		100L/min
GW Motor		22kw
RW Motor		3kw
Power Supply		3N 50HZ 380V
Dimension(L*W*H)		3200*1785*1800mm
Machine Weight		About 7.5 tons

---
