Precast Concrete Equipment Hollow Brick Machine Qt10-15

Product Description

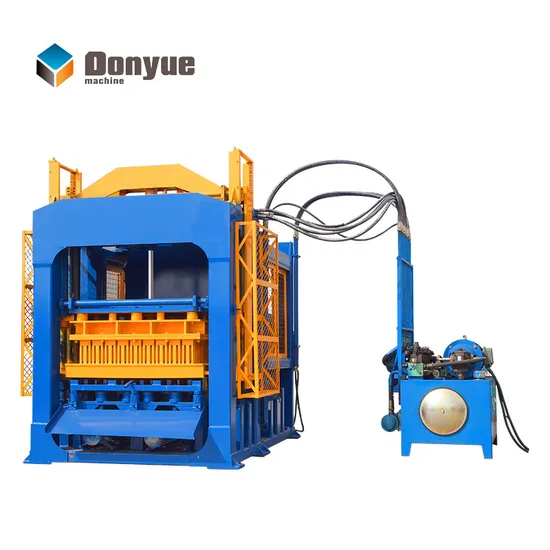

Precast concrete equipment hollow brick machine QT10-15

concrete hollow brick machine equipment
1.Supporting Plate Size:1300x900x25/30mm
2.Exciting Force:100KN
3.Blender Model:JS750
4.Molding Cycle:15-25S
5.Weight:14T

1.Company introduction


Dongyue Machinery Group Co.,Ltd is a company specialized in producting Automatic block machine, aerated concrete block machine, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, Oxygenated diesel, dimethyl ether , plant asphalt nine series,more than 60 varieties.



2.QT10-15 concrete hollow brick machine equipment introduce :





Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.

Block mold machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.

Screw Conveyer (Optional fitment): loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.

Conveyer Belt: When the Batching plant's weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.

Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.


3.QT10-15 concrete hollow brick machine equipment detail part overview

4.QT10-15 concrete hollow brick machine equipment details

Detailed specification:
Dimension of host machine	3500×2220×2850mm	control style	PLC
forming style	Hydraulic	Vibration force	100KN
vibrator style	table and mould vibrate togather	raw material feeding style	360 degree revole
forming hight	40-250mm	moulding period	15-20S
moulding aera	1025×810mm	size of pallet	1350×900×30mm
weight of host machine	14ton	Mixer style	JS750
General water Consumption	12T/day	Voltage	220/240/380/440V
Simple block machine line area needed
Workshop		200m2
Office		100m2
Total area		About 2000m2
Worker arrangement
operate	1	Material loader	1
Drive forklift	1	Feeding pallets	1
Maintain	1	Total	5
Production capacity
Size(L x W x H)	Pcs /Mould	Pcs / Hr
400X100X200	20	3000-3600
400X150X200	14	2100-2520
400X200X200	10	1500-1800
400X250X200	8	1200

5.QT10-15 concrete hollow brick machine equipment Main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure

6.Technical characteristics of QT10-15 concrete hollow brick machine equipment :
1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder,will work at the same time,to insure the same density and high quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic System.
7).Install the waste recycling tank,could reduce the waste of materials


7.Our certifications


Our company has passed ISO9001 quality management system, CE certification and has won PROVINCIAL FAMOUS TITLE, HIGH-TECH ENTERPRISE, CUSTOMER SATISFACTION UNIT,AAA GRADE CREDIT QUALITY, NATIONAL CONTRACT AND TRUSTWORTHY ENTERPRISE.

---
