ABA Film Blowing Machine Set with Coextrusion Rotary Die

Product Description

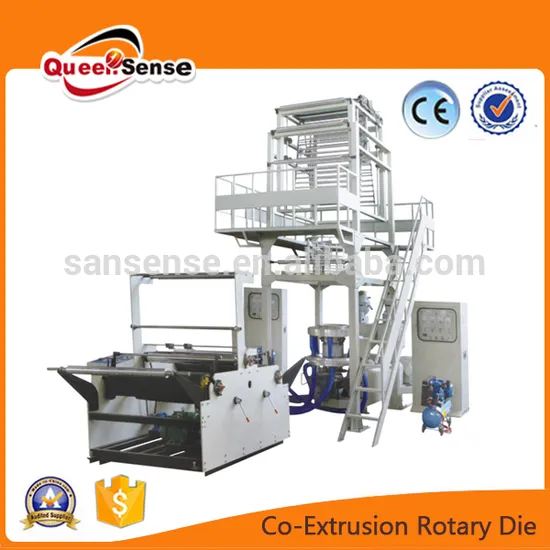

QS-2G65 Double-layer Co-extrusion Rotary Die Film Blowing Machine Set / Small extrusion blow moulding machine (Including rotary die and double winder)

Feature:
double screw ABA die head film blowing machine
the machine with two screw ,but can make three layer films.A(PE)+B( Filling material)+A(PE), it save much cost of the film.

Characteristics:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.

Usage:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid, printed base material, products for export and industrial products,etc.
Main Technical Varia

Main Technical Parameter
Model	QS-2G65
Suitable Material	HDPE/LDPE/LLDPE/EVA
Film Wide Range(mm)	1200-2000mm
Film Thickness(mm)	0.02-0.20
Extrusion Capacity(kg/h) (Max )	180KG
Voltage Support	380V/50Hz
Cover Dimension (m)	7*3.8*8
Extrusion Unit
Screw Diameter(mm)	5565*2
Screw L/D Ratio	28:1/30:1
Screw Material	38 CRMOALA
Barrel Material	38 CRMOALA
Heating Ring Material	Stainless Steel
Barrel Cooling Fan	370W*2
Thermo Control (zone)	4
Main Motor(kw)	30KW*2
Inverter	Paineer
Gear Box	180

Packing&Shipping
Packaging Details: film wrapping or wooden case
(Normally we use stretch to wrap the machine. Wooden case is also acceptable to us if it is required. Our packing ways are seaworthy.)
Delivery Details: 25-30days after deposit
model film blowing machine
2SJ-G model film blowing machine

1	Material and use	make LDPE HDPE material to plastic roll film
2	Screw barrew	Diameter 50/55mm max film width:800/1000mm L/D redio 28:1
3	Die head parts	Size:100 120 rotary three-through/screem changer
4	Film traciton	A shape wooden up and down adjust worm gear motor
5	Film roller	Traciton roller embossing roller rewinder roller rubber roller
6	Rewinder parts	single/double parts Automatic tension torgue motor
7	Exthruder	Power:48-60kw capcity 50-120kgs/h high:4.5-5m
8	Important parts	Motor,inverter,,air cylnder,air blower,air compressor,,edge folder

Company information:
Ruian Queensense machine CO.,LTD, one of the most influential company in Zhejiang, devotes ourselves to the production of Film blowing machine, plastic bag making machine, bubble film making machine, granules recycle machine and other packing machines for many years.
* Inquiry and consulting support. *Training installment and usage of the machine
* Sample testing support. *Engineers available to service machinery overseas.
* View our Factory.
Advantages: 1.The owner of our company has more than 12 years experience with film blowing machine & plastic bag making machine. We are top-leading factory in machinery industry and have good English skills. Our members all master international trading.
2.We have over 10 staffs in sales department to develop market all over the world. Prompt responses and quick feedbacks are gauranteed.
3.More than 10 professional engineers who continually innovate products; design new good-quality machines according to customers' requirements.
4.15 professional after-sale service workers are ready to serve our customers anywhere.
Quality is everything and we want to make our customers to be our spokesmen!! This is the ultimate aim of us! We're looking forward to cooperating with you! Please feel free to contact us!

Warranty: Machine with one year warranty,all spare parts will be given free within one year.
engineer dispatch is possible,the buyer must assume the cost of round-trip airfare and accommodation etc.
Also the salary is120USD/Day.
