1sc High Pressure Braided Hose Series En857 1sc ISO 11237 Hydraulic Hose

US$1.14

500-4,999 Meters

US$1.10

5,000-49,999 Meters

US$1.00

50,000+ Meters

Basic Info.

Model NO.

1SC

Color

Black

Dash

4-16

6.3-25

Inch

1/4-1

I.D

6.5-26.2

O.D

12.6-34.3

Max W.P

22.5-8.8MPa

Min B.P

90-35.2 MPa

Min B.R

75-230 mm

Transport Package

Wooden Box or Carton

Specification

6.3-25mm

Trademark

ARGUS

Origin

China

HS Code

4009210000

Production Capacity

1000000 M /Year

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 20.00cm

Package Gross Weight

1.000kg

Product Description

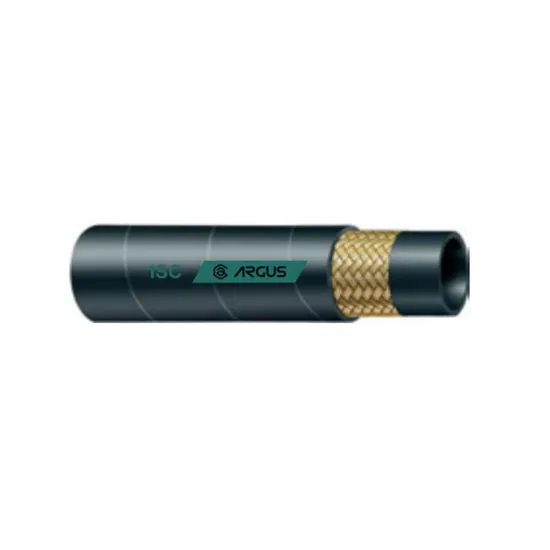

Product Description1SC hydraulic hose is a hydraulic hose designed to withstand medium to high pressures. It is made of high-quality materials and has an operating temperature range of -40°C to 100°C. It is made of a special synthetic inner rubber layer reinforced with a high-strength steel wire braid. This construction provides excellent flexibility and durability, allowing the hose to bend and twist without kinking or breaking. The high-strength steel wire braid also provides strength and support, ensuring that the hose can withstand high pressures without breaking. Another important feature of the 1SC hydraulic hose is its resistance to oil and abrasion. The synthetic inner rubber layer is oil-resistant, ensuring that hydraulic fluid can flow smoothly through the hose without contamination. The outer rubber layer is also abrasion-resistant, protecting the hose from wear caused by external factors such as friction or impact.

Type	Hose Size			1.D		0.D		Max WP		Min B.P		Min B.R	W.T
Type	Dash	mm	inch	Min	Max	Min	Max	MPa	Psi	MPa	Psi	mm	kg/m
1SC-04	-4	6.3	1/4	6.5	6.9	12.6	13.4	22.5	3260	90.0	13050	75	021
1SC-05	-5	8	5/16	8.0	8.5	13.5	14.5	215	3120	86.0	12470	85	0.23
1SC-06	-6	10	3/8	9.5	10.0	15.5	16.5	18.0	2610	72.0	10440	90	0.30
1SC-08	-8	12.5	1/2	12.7	13.3	18.9	199	16.0	2320	64.0	9280	130	0.39
1SC-10	-10	16	5/8	15.9	16.7	22.1	23.1	13.0	1885	52.0	7540	150	0.47
1SC-12	-12	19	3/4	18.9	19.7	25.5	26.5	10.5	1520	42.0	6090	180	0.55
1SC-16	-16	25	1	25.4	26.2	33.1	34.3	8.8	1280	35.2	5100	230	0.84
