Industrial-Grade Super Large Glass Lifter for Construction and Curtain Wall Applications

Product Description

Large-sized Electrical Glass/Steel Plate Vacuum Lifter Features
1. Designed for super-size glass/steel plate
2. Heavy Lifting efficient, convenient to operate and handle
3. Customized No. of vacuum suction cups, working load up to 2T
4. Sealed cover for components protection, suited for outdoor use
5. Power-off protection and alarm function for lack of vacuum

Item	Spare Parts	Specification	Supplier	Qty.
1	Vacuum Pump	VT4.40,0.35kW,Max. vacuum 80%	Germany BECKER	1
2	Pressure Sensor	-600 mpa	TITA	1
3	Suction Cup	chemigum, Ф300mm	Made in China	18
4	Vacuum Non-returning Valve	G 1/2"	Japan SMC	1
5	Vacuum Filter	G 1/2"	Made in China	1
6	Manual Ball Valve	G 3/4",two-position two way	Made in China	18
7	Manual Slide Valve	G 2",two-position two way	Made in China	1
8	Alarm system	alarm light+buzzer	Japan Siemens	1
9	Electrical Control Panel	default phase protection, overload protection, leakage protection	Made in China	1
10	Steel Structure	welded surface spray treatment	Made in China

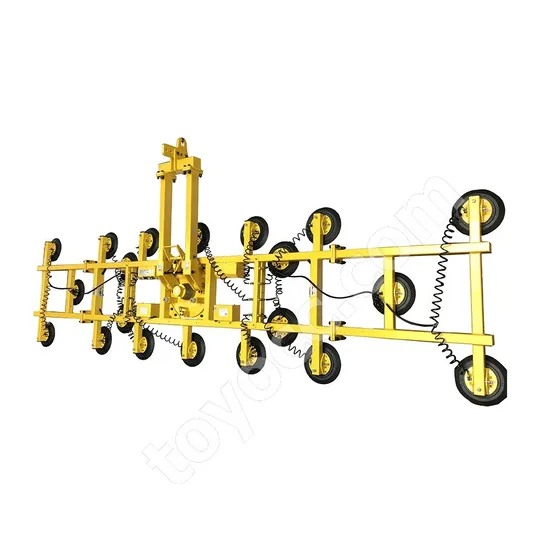

Appearance Diagram
Certificates
Package
More Products

FAQ
Q: How about the delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container.
Of course, we can also meet the urgent delivery time if the production schedule is not tight. Welcome to ask for the detailed delivery time according to your order quantity!

Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team, and each of our package workers will be in charge of the final inspection according to the QC instruction before packing.

Q: I'd like to know your Payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are
acceptable for sample order.
Q: How can I know how my order is being done?
A: We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
Q: OEM Capability:
A: All OEM orders are welcome.

---
