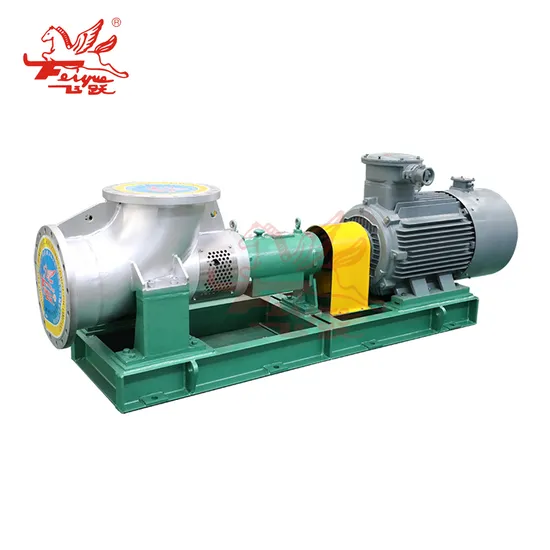

Fjxv Centrifugal Axial Flow Circulation Water Pump for Ammonium Chloride Evaporation Forced Circulating with ISO/CE

Product Description

Fjxv Centrifugal Axial Flow Water Pump for Ammonium Chloride Evaporation Forced Circulating with ISO/CE
Product DescriptionConform to design standard of GB/T13008
Flow range: ~15000m3/h
Lift range: 1.5~7.0m
Design pressure: ~0.6MPa
Application temperature: ~200ºC
Application field: Transport all kinds of solid particle contained neutral or strong corrosive medium.
Mainly used in big flow and low lift occasions, especially suitable for salt making and alkali making forced
circulation systems.Product overview
FJX V type series evaporative forced circulating pump is the 5th generation product developed by our company based on our years of production, maintenance and using experiences.
Application fields extend from caustic soda evaporation to: ammonium phosphate, phosphoric acid, vacuum salt making, alcohol, lactate, alumina, rutile titanium dioxide, calcium chloride, ammonia chloride, cryogen, melted salt, polyvinyl chloride, waste acid concentration etc.
FJX V type series evaporative forced circulating pump is designed by professional engineer dedicated in evaporation design from special design committee.
Installation methods: floor fixed installation, suspension type, floor floating type.
Sealing structure: auxiliary impeller + combined type double end face mechanical sealing/combined type double end face mechanical sealing/double packing seal.
Parameter range
Flow range:300~23000m2/h; Lift range: 1.5~7m;Working pressure:≤0.6MPa;Working temperature:≤300ºC
Pump body structure
Cast steel or steel plate welding
Transflux parts materials
ZG20#,1Cr18Ni9Ti,316L,CD4MCu,Ti,Ni,monel,Inconel,2205,2520,904L etc.
Product instruction
Chart

1	Impeller nut	2	Impeller cover	3	Impeller clamp	4	Impeller	5	Dome	6	Pump body
7	Pump body bearing	8	Axle	9	Container type mechanical seal	10	Front axle bearing cover	11	Cylindrical roller bearing	12	Bearing box
13	Angular contact bal bearings	14	Rear axle bearing cover	15	Pump coupling	16	Bearing box bracket	17	Oil mirror	18	Oil cup

1	Impeller nut	2	Impeller cover	3	Impeller clamp	4	Impeller	5	Dome	6	Pump body
7	Pump body bearing	8	Axle	9	Container type mechanical seal	10	Front axle bearing cover	11	Cylindrical roller bearing	12	Bearing box
13	Angular contact bal bearings	14	Rear axle bearing cover	15	Pump coupling	16	Bearing box bracket	17	Oil mirror	18	Oil cup
19	Pump rack	20	Bearing box bracket

Product ParametersPerformance parameters of the table
