China Industrial Radial Drilling Machine (ZQ3040X13)

Product Description

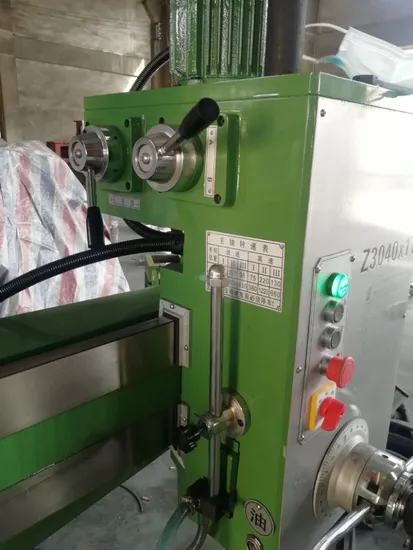

China Industrial Hydraulic Radial Drilling Machine ZQ3040x13
These radial drilling machines of Model ZQ3040× 13 are our main products and sell well at home and abroad because of their best quality and stability. These machines can be used to implement many processes, such as drilling, expanding, reaming, grooving, tapping and etc. On the small and middle parts and even boring if the relevant equipment are available and they are regarded as the idler machining equipments in the machinery and machine work industries.
Radial Drilling Machine
Universal machines
Capable of drilling
Counter-boring reaming,
Spot-facing tapping
Z3035x10 Radial Drilling Machine
1. The radial drilling machine is universal machines, capable of drilling, counter-boring, reaming, spot-facing, tapping and other similar utilities.
2. It is widely used in manufacturing machinery, for processing small and medium size machinery parts and also suitable for being used in repairing.
3. The machine is adopted strengthened type of spindle so that it increases the rigidity of spindle and widens the scope of utility.
4. The spindle has a wide range of turning speed and feeding speed, which make the operation more convenient and more precise.
5. The dimension processed can be set up before working, this allow it stop feeding automatically and has more accuracy
Radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine

Model	ZQ3040x13
Max drilling dia(Steel/Iron)(mm)	35/40
Distance between spindle to column(mm)	280/1290
Horizontal movement of spindle box (mm)	1020
Distance between spindle to base(mm)	235-1100
Spindle travel(mm)	270
Spindle taper	MT4
Spindle speed(6steps)(r/min)	38-947
Spindle feeds(3steps)(r/min)	0.10,0.16,0.25
Max feed resistance of spindle(N)	6300
Arm elevator speed(m/min)	1.3
Radial turn angle	360°
Main motor(kw)	3
Elevator motor(kw)	0.75
Net weight(kg)	1700
Oversize dia (mm)	1900x800x2350

---
