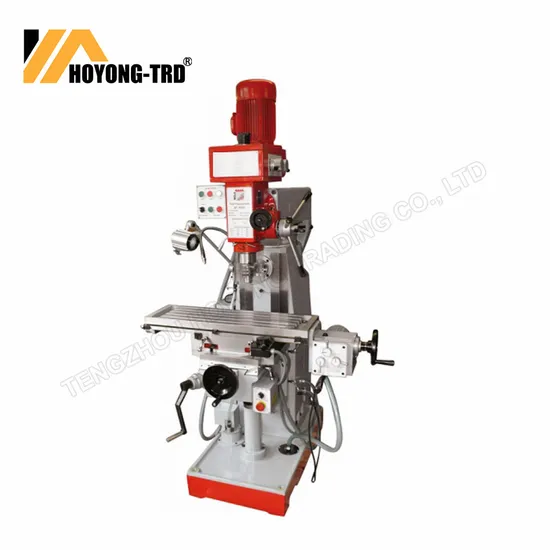

Vertical Drilling and Milling Machine Zx7550 Zx7550W Zx7550c Zx7550cw

US$4,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZX7550 ZX7550W ZX7550C ZX7550CW

Type

Worktable Milling Machine

Object

Tool

Structure

Desktop

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Overall Welding Tooth

Controlling Mode

Program Control

Automatic Grade

Automatic

Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Layout

Vertical

Number of Shaft

Hole Diameter

<50mm

Transport Package

Plywood Case

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

84595900

Production Capacity

10 PCS/Month

Product Description

VERTICAL MILLING AND DRILLING MACHINE:
1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
SPECIFICATIOS:

MODEL	ZX7550	ZX7550C	ZX7550W	ZX7550CW
Max.drilling dia (mm)	50	50	50	50
Max.horizontal milling dia (mm)	100	100	100	100
Max.vertical milling dia (mm)	25	25	25	25
Max.boring dia (mm)	120	120	120	120
Max.tapping dia	M16	M16	M16(Vertical)	M16
Distance.spindle to table surface (mm)	140-490	90-490	80-460	90-490
Spindle speeds range (r.p.m)	230-1825	115-1750	230-1825(Vertical) 80-1300(horizontal)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120	120	120	120
Table size (mm)	800×240	800×240	800x240	800×240
Table travel (mm)	400×230	400×230	400x230	400×230
Overall dimensions (mm)	1100×1100×2080	1100×1100×2080	1280×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5	0.85/1.5	0.85/1.5(Vertical) 1.1(horizontal)	( Vertical)0.85/ 1.5 (horizontal)2.2
N.W/G.W (Kg)	610/770	610/770	700/880	850/1000
