Livestock Cattle Sheep Feed Mixer CE 2t/H Vertical Pto Tmr Feed Crusher Mixer

Product Description

Livestock Cattle Sheep Feed Mixer CE 2T/H Vertical PTO TMR Feed Crusher Mixer Introduction of TMR Feed Mixer
TMR feed mixer,also know as the whole mixed diet feed mixer,TMR feed preparation machine,TMR feed mixer,TMR mixer,is a set of crushing,
mixing in one of the feed processing equipment.It is suitable for feed farming in farming and animal husbandry breeding areas,large and medium-sized farms and standard communities.It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and
silage feedstuffs and mixing them with fine feedstuffs.According to the design structure points,a fixed feed mixer and self-propelled feed mixer.
Product Parameters of TMR Feed Mixer

Model	9JGW-13	9JGW-10	9JGW-5
Overall size(mm)	47010*1900*2300	4200*1900*2300	3700*1900*2300
Qty of blade(pcs)	Moving blade 52 Fixed blade 8	Moving blade 42 Fixed blade 6	Moving blade 37 Fixed blade 4
Rotating speed(r/min)	12-16	12-16	12-16
Weight(kg)	2600	2100	1900
Capacity of material hopper(m³)	13.2	10.03	5.3
Matching power(kw)	22-30	18.5-22	15-18.5
Productivity(t/h)	5000-7000	3800-6000	2000-4000

Show details of the Feed Mixer

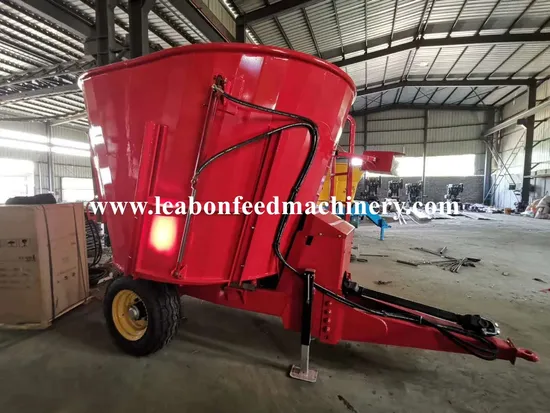

Vertiacal Feed Mixer

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

Self-propelled Feed mixer
Final Product of TMR
Tricycle Spreader Mixer

Model	9SL-2	9SL-3
Battery	5PCS,60V	6PCS,72V
Structure Type	electric tricycle	electric tricycle
Feeding method	Spiral auger	Spiral auger
Sprinkling method	Belt	Belt
Size	3100*1200*1800mm	3600*1400*2000mm
Weight	1100kg	1500kg

Complete product line
Related Products Shredder&TMR Silage Baler&Wrapper Animal Feed Pellet Machine Customer feedback Our company
FAQ Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.
Contact us
If you interest in our machine,please click "SEND",to get more details of the Livestock Cattle Sheep Feed Mixer CE 2T/H Vertical PTO TMR Feed Crusher Mixer.

---
