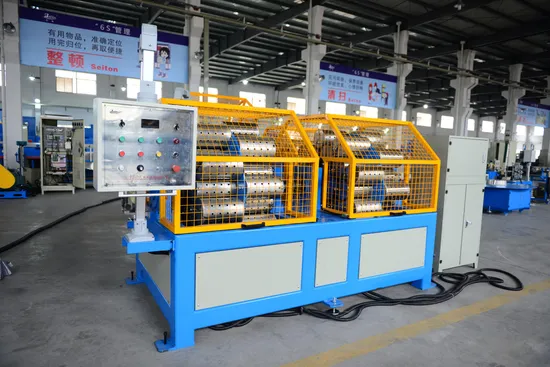

Winded/ Wrapped Rubber Tube /Pipe Production Line

Product Description

rubber hose extrusion production line


Various types of basic parameters:

Item	Diameter of screw(mm)	L/D ratio	speed of screw(r/min)	Driving power(kw)	Max output of production (kg/h)	Weight(kg)
150mm 20D (vacuum)	150	20:1	0-45	160	1000	6500
150mm 16D	150	16:1	0-45	132	800	6500
120mm 20D (vacuum)	120	20:1	0-50	110	700	5200
120mm 16D	120	16:1	0-50	110	600	5200
90mm 20D (vacuum)	90	20:1	0-55	55	320	3200
90mm 16D	90	16:1	0-55	55	280	3200
75mm 20D (vacuum)	75	20:1	0-55	37	160	1200
75mm 16D	75	16:1	0-55	37	140	1200
50mm 12D	50	12:1	2-70	7.5	50	600

The rubber extruder can produce:
(1) Rubber single wall hose, rubber composite hose
(2) Rubber braiding hose, rubber knitting hose
(3) Rubber profiled strip
(4) Door & window sealing strips, used for car, ship, plane, railway and home decoration
(5) Rubber profiles with metal inserts
(6) Household appliances sealing strips, used for refrigerator, oven
(7) Foam hose, foam strip
(8) Rubber profiles for construction
(9) Rubber roller coated
(10)Automobile tires, motorcycle tires
(11)Automatic lift rubber handrail
(12)Rubber sheet
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.

---
