Liquid Oxygen Storage Tank

Product Description

Product Parameters

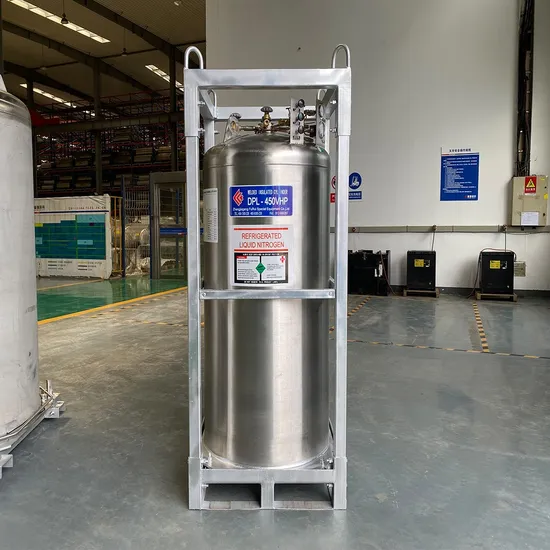

Cryogenic Liquid Cylinder
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy /research/fish-heat preservation, etc.
Advantages:Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide
Different sizes, pressure, and features to meet your needs
Stainless steel bottle construction
Thick, dent-resistant outer shell
Durable inner-vessel support system
Heavy-duty footring and large diameter handling ring with four supports Features
(1)Pallet skip Design: Centralized gas supply system on pallets skip: collect Storage tank, PBC, Vaporizer, and pipelines. Design compact.
(2)Quality Well: High vacuum multi-layer insulation and well designed structure, and no liquid loss.
(3)Easy installation: can put anywhere you want on working site.
(4)Easy transportation: Can lift hooks, or by forklift on movable base.
(5)Easy Operation: All the data is showed on instrument, and can be adjusted according to actual situaton of gas pressure regulation.
(6) Easy Maintenace: CGA Connection, which is convenient to assemble and disassemble.
(7) Intelligent Equipment: taking remote liquid level and pressure supervision, can send tank liquid data to your phone.

Simple information
Storage medium	LO2, LN2, LAr, LNG or LCO2
Capacity	1000 L~7500 L
Working pressure	1.6/ 2.5/ 3.5 Mpa
Certifications	CE, ASME, AD2000, KGS, NB, CRN, ISO9001 : 2008

---
