PVC Pipe Production Line Plastic Pipe Making Machine Extrusion Machinery Hot Seller

Product Description

Product Description

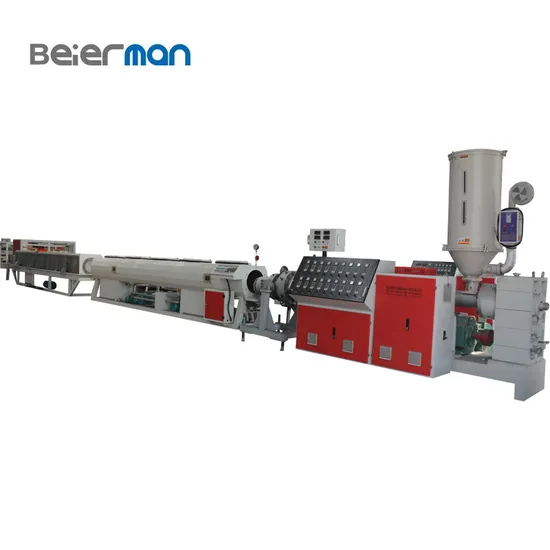

GF series plastic pipe material production line is mainly used in the area of agricultural water supply system,architectural water supply system,pavement of cables,etc.as well as PVC pipe material of all sorts of pipe caliber and wall thickness.This machine group consists mainly of twin conical(parallel)screws extruder,vacuum calibrating tank,haul-off unit,cutting unit,tilter,etc.single screw extruder and haul-off unit have applied impoded A/C inverter,both vacuum pump and driving motor have applied excellent products.The drawing machine includes two-claw type,three-craw type,four-claw type,six-claw type,eight-claw type,etc.Saw cutting or planet cutting can be applied,it is additionally applied with length measuring meter and thickness increasing device,the property of machine group is reliable,the production efficiency is high.With special device,it can produce inner wall spiral pipe,inner wall hollow pipe,and core layer bulpo pipe,etc,it can also produce PP,PE,ABS,&PPR,PEX,silicon core pipe and pipe material of other material.The planet-shaped cutting machine is fully automatic computer digital control,it has such advantages of simple operation,reliable property,etc.It has reached world advanced level.

Extruder	51/105	55/120	65/132			80/156		92/188
Pipe Diameter	16-40	50-110	16-32	50-160	50-200	110-250	250-400	315-630
Die Head	Double outlet	Single Outlet	Four Outlet	Single Outlet	Single Outlet	Single Outlet	Single Outlet	Single Outlet
Auxiliary Machine	GF40	GF110	GF32	GF160	GF200	GF250	GF400	GF630
Total Power(KW)	60	70	91	85	86.5	136	156	233
