| US$3,000.00-50,000.00 | 1 Set (MOQ) |

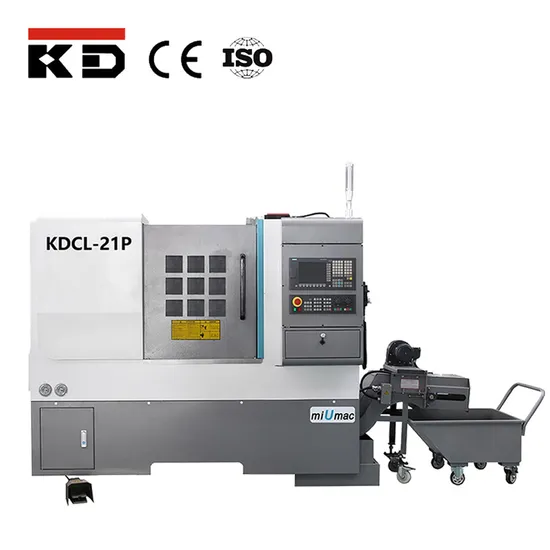

| MODELS | KDCL-21P |
| CAPACITY | |
| Max. swing over bed | Ф420mm |
| Max. cutting diameter for disc parts | Ф120mm |
| Max. length of workpiece | 280mm |
| TRAVEL | |
| X travel | 450mm |
| Z travel | 350mm |
| Guide ways X&Z | Precision linear ball rail |
| FEED | |
| Rapid feed for axis X | 28m/min |
| Rapid feed for axis Z | 28m/min |
| SPINDLE | |
| Max. speed of spindle | 60-4000rpm |
| Spindle nose | A2-5 |
| Diameter of spindle thru hole | Ф56mm |
| Hydraulic chuck | 6″ |
| Type of spindle motor | Servo motor |
| TOOL POST | |
| Tool number | Gang Tool |
| Gang tool table/distance between T-slot | 200x650mm/50mm |
| Standard tool size | 20x20mm |
| OTHERS | |
| Main motor | 5.5kW |
| Min. input | 0.001mm |
| Bed structure | 45° slant bed |
| Overall dimensions(L×W×H) | 2320×1650×1750mm |
| Net weight | 2500kg |
