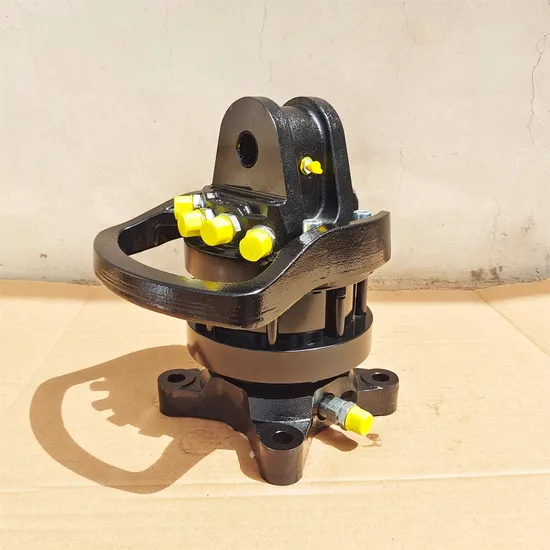

Log Loading Crane Hydraulic Rotator 4 Ton Hydraulic Rotator GR40A/F On Log Trailer rotator
Hydraulic rotators are the most common accessories for crane and excavator attachments such as orange peel grapples, clamshell buckets, log grabs and drywall forks. Hydraulic rotators allow the operator to run the equipment in both directions of rotation.
| Model | GR40AF |
| Rotation | Unlimited |
| Max axial load static, KN (lbf) | 45 (10118) |
| Max axial load dynamic, KN (lbf) | 25 (5621) |
| Torque at 25Mpa (3625psi), Nm (lb ft) | 1100 (811) |
| Rec oil flow, l/min (US gallon) | 20 (5.3) |
| Weight, kg (lb) | 25 (55) |
| Working pressure | Max 25 MPa (3625 psi) G3/8 |
| Grapple / Tool open | Max 20 MPa (2900 psi) G3/8 |
| Grapple / Tool close | Max 30 MPa (4350 psi) G3/8 |
