Low speed Plastic drums lumps films Double shaft shredder Motor Power(55x2kW)

Product Description

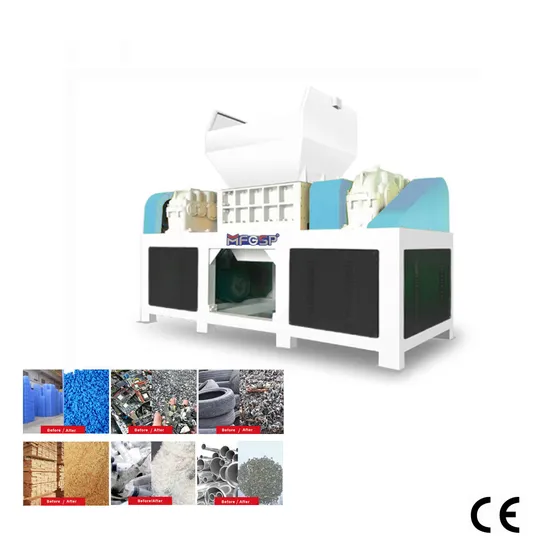

Double shaft shredder

Performance characteristic:
Multifunctional shredder is also called double-shaft shredder,which specializes in handling waste cars,waste tires,electronic waste,wooden pallet,waste household appliances and furniture,etc.The geometry of the blade can be customized according to the specific materials to be processed. Two reverse rotating shafts with specially designed blades and a spacer comb placed between the blades and connected to the wall of the shredded chamber vigorously cut the material into pieces.
Product introduction
This series of double shaft shredders can meet the waste recycling requirements of various industries, and is suitable for shredding thick and hard to break materials such as electronic waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, etc.
There are many kinds of recyclable materials, and the shredded materials can be recycled directly or further refined according to demand.
It is applicable to industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, papermaking and other industries.
Scope of application
Fully automatic production line
Detailed description

	Reinforced case, smooth and flat inner cavity, tenon structure, easy to disassemble
	The intelligent control system monitors the whole operation process of the equipment in real time to ensure the safety of the tool
	The gearbox of the shredder adopts a hard gear reducer with high precision and long service life
	The shredder blade is made of alloy steel after forging, fine grinding, annealing, heat treatment and tempering

Combined Type

Solid Blades It is suitable for tearing up various common materials, such as electronic waste, hard plastic, rubber, various material packaging barrels, etc	Assembly Blades Suitable for tearing heavy metals or thick plastics, such as refrigerators, metal buckets and materials with a thickness of more than 10mm	SW Blades Suitable for tearing fragile or brittle materials, such as wood, aluminum engine shell, etc
VZBlades Suitable for tearing SB materials, such as packaging aluminum, car shell, etc	Special Blades It is suitable for tearing hard materials such as circuit boards, and can directly tear materials to a size of less than 10mm without screen	SPR Blades It is suitable for the treatment of RDF (waste derivative natural material), MSW (solid waste) and other domestic waste for pre-crushing and unpacking, and the material discharge is less than 300mm

Blades with different hooks

Single-hook blade

Two-hook blade

Four-hook blade

Six-hook blade

Hooks type			Application characteristics
Single-hook blade			Single hook blade configuration is the most universal blade choice.It has a powerful structure and can be used in a wide range of applications.
Two-hook or Multi-hook blade			Multi hook blade configuration is used primarily for shredding easy to shred products.It is more efficient when doing light shredding applications.

Blades with different thickness
·10mm-20mm blade is suitable for thin and fragile products, such as medical supplies and circuit boards
·40mm-50mm thick knife is used for general products, such as plastic products, films, plastic buckets, tires, wood boards, etc
·The blade with a thickness of more than 75mm is suitable for thicker plastic or plastic and metal composite products, such as refrigerators, metal cans, and other products with a metal thickness of less than 100MM

Technical parameter
Model	SPS200	SPS300	SPS400	SPS500	SPS500-1	SPS600
Motor Power(kw)	1.5	3	4	7.5	5.5x2	7.5x2
Electric control	Overload shutdown	Overload shutdown	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse
Reducer	RV90	KA77	K87	K97	K87x2	K97x2
Speed(r/min)	15	16	14	15	17	15
Blades Diameter(mm)	158	180	180	200	200	220
Blades Thickness(mm)	8-12	10-15	12-20	15-25	15-25	20-30
Feeding Diameter(mm)	350x450	650x550	700x650	850x700	850x700	900x700
Blades Box Diameter(mm)	210x300	310x370	410x370	510x400	510x400	610x450
Overall dimension L*W*H(mm)	600x600x1200	850x700x1200	1150x700x1400	1350x750x1700	1900x750x1700	2000x800x1800
Scope of application	Plastic products, food packaging, electronic waste, kitchen waste, fiberboard, confidential destruction, etc
Model	SPS1400	SPS1600	SPS1800	SPS1800-1	SPS2000	SPS2600
Motor Power(kw)	55x2	75x2	90x2	110x2	132x2	220x2
Electric control	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse	PLC overload automatic reverse
Reducer	Planetary ReducerTP12	Planetary ReducerTP13	Planetary ReducerTP14	Planetary ReducerTP16	Planetary ReducerTP18	Planetary ReducerTP20
Speed(r/min)	8-12	8-12	8-12	8-12	8-12	8-12
Blades Diameter(mm)	500	550	600	650	700	800
Blades Thickness(mm)	60-90	80-100	90-120	100-140	100-150	100-180
Blades Box Diameter(mm)	4120x1000	1620x1100	1820x1200	2020x1300	2020x1400	2600x1600
Scope of application	Decoration waste, industrial solid waste, hazardous waste, large oil drums, trays, large pieces of garbage, refrigerators, tires, car shells, etc
