| US$540,000.00-600,000.00 | 1 Piece (MOQ) |
| No. | Description | Unit | Specification |

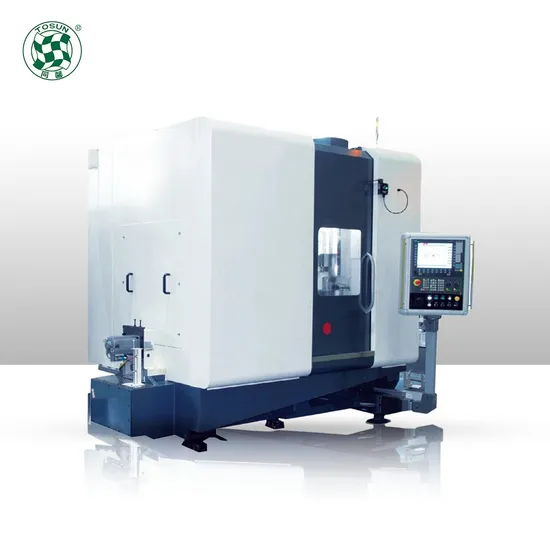

| Model | YS7232H | ||
| 1 | Max. workpiece diameter | mm | 320 |
| 2 | Max. workpiece module | mm | 6/8 |
| 3 | Max. speed of grinding wheel spindle | r/min | 12000/7800 |
| 4 | Max. speed of workpiece spindle | r/min | 2000/1000 |
| 5 | Distance from grinding wheel center to worktable rotation center | mm | 50~450 |
| 6 | Grinding wheel installation dimensions | mm | Φ240×Φ76.2×200/Φ300×Φ115×160 |
| 7 | Max. installation size of roller | mm | Φ150×Φ52×40/ Φ140×Φ52×40 |
| 8 | Electric spindle power | kW | 38 |
