Euro III Emission Standard Radlader (HQ912) with Ce

Product Description

Haiqin Brand Small Front End Wheel Loaders (HQ912) with Ce
1,Features of HQ912 Small Front End Wheel Loaders
1) CE Certificate
2) Fully Hydraulic Driving, 4 wheel drive.
3) CE Engine.
4) Multi-function, joystick operation.
2, Details Specifications of HQ912 Small Front End Wheel Loaders

Specifications of HQ912 wheel loader :
1,Engine Details
Model:	Changchai 4L68 / Xinchai 490 ( Euro III and EPA )
Engine type:	In-line arrangement, water-cooled, four-cycle diesel Engine
Rated Power:	37kw
Rated Speed:	2200 r/p. Min (rpm)
Fuel Consumption ratio in standard working condition:	230g/kw. H
2,Transmission System
Type:	Fixed-spindle Power shift
Shift gear control oil pressure:	1.2~1.5MPa
Rated input speed:	2500 (rpm)
3,Bucket
Bucket Capacity:	0.6 m3 - 0.8m3
Bucket width:	1700mm - 1900mm
Bucket type:	Heavy-duty bolt on teeth
Max. Breakout Force:	38KN
Rated Load:	1200kg
Operating Weight:	3400kg
4,Overall Dimensions
Overall Length (Bucket on ground position):	4800mm
Overall Height :
(a) Ground to Cab Top:	2700mm
(b) Dumping Height:	2650mm
(c) Overall Width:	1730mm
5, Operating Specifications
Steering System:	Articulated Frame with hydraulic power steering
Min Turning Radius:	4500mm
Driving System:	Hydraulic converter
6,Brake System
Service Brake:	Four Wheel Hydraulic spread-shoed brake
Parking Brake:	Hand operated
7,Tyre
Model:	11.00-16 / 12-16.5
8,Wheelbase :	2005mm
9,Track:	1400mm

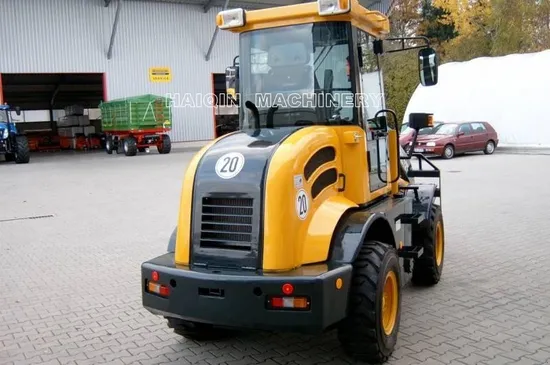

3, More Details photos of HQ912 Small Front End Wheel Loaders
4,Factory introduction of Haiqin Machinery
5, Working Case in the foreign countries of Haiqin Machinery' Loaders.
6,Certificate of Haiqin Machinery
7,MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8,Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!

---
