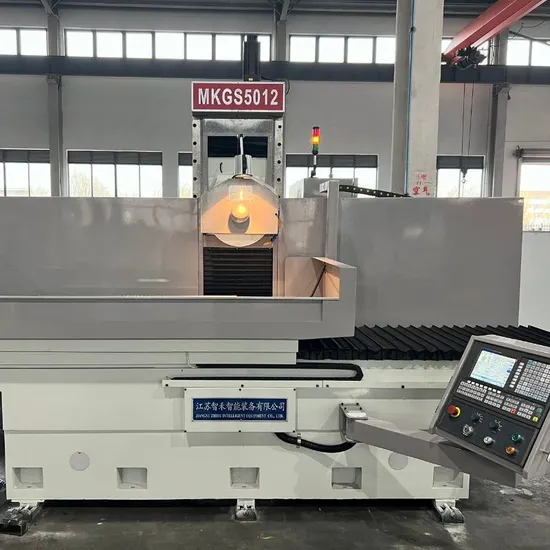

Mkgs5012 CNC Column Moving Automatic Surface Grinding Machine

Product Description

Surface Grinding Machine Introducing the Surface Grinding Machine from Jiangsu Zhihe Intelligent Equipment Co., Ltd. This machine features a tetrafluoroethylene soft belt on the worktable and saddle flat guideway for smooth operation. The combined guideway structure integrates the saddle, column, and roller for enhanced stability.
This is a kind of column moving type grinding machine with CNC control
It can be designed as 1 axis CNC control or 2 axis CNC control.

Paramenters		MKGS5012 CNC CONTROL TWO AXIS
Worktable surface	mm	500x1200
max table travel	mm	1300
max cross travel	mm	540
distance between table surface to spindle center	mm	590
max load	kgs	800
T-slots		3x16
table speed	m/min	8-25
cross feed handwheel 1 gard	mm	0.02
1 rev	mm	5
automatic crossfeed of saddle	mm	0.5-12
power cross feed 50HZ	mm/min	1250
60HZ	mm/min	1500
grinding wheel size	mm	355X40x127
Spindle speed 50HZ	RPM	1450
60HZ	RPM	1740
Vertical handwheel 1 gard	mm	0.002
1 rev	mm	0.05
automatic down feed rate	mm	-/0.005~0.04
power head increment	mm/min	230
spindle motor	kw	7.5
vertical motor	w	370
hydraulic motor	kw	2.2
dust collection motor	w	550
coolant motor	w	90
crossfeed motor	w	370
floor space	mm	4450x2200
package size	mm	3390X2255X2225
NET weight	kgs	5000
Cross weight	kgs	6000

Welcome to Jiangsu Zhihe Intelligent Equipment Co., Ltd. 1. How can I choose the most suitable machines?
A: Please provide your specifications, and we will help you select the best model. Alternatively, you can choose the exact model or send us product drawings for our recommendation.
2. What are the main products of your company?
A: We specialize in various machines including surface grinding machines, CNC surface grinders, CNC milling machines, vertical machining centers, drilling machines, gantry milling machines, and CNC gantry grinding machines.
3. Where is our factory located? How can I visit there?
A: Our factory is situated at NO 370 Changjiang North Road, Nantong, Jiangsu, China. Kindly inform us in advance if you wish to visit, and we will make necessary arrangements.
4. What are your trade terms?
A: FOB, CFR, and CIF are all acceptable.
5. What are the Payment Terms?
A: We accept T/T with a 30% initial payment upon ordering and a 70% balance payment before shipment. Irrevocable LC at sight is also an option.
6. What is the MOQ?
A: The MOQ is 1 set, with only some low-cost machines requiring more than 1 set.
We would like to know:
1. What is your Industrial Voltage?
2. It is recommended to provide the size and material of your workpiece for evaluation. Sending workpiece drawings would be even better for us to recommend the most suitable model.
3. If you require CIF Price, please specify the port of destination.

---
