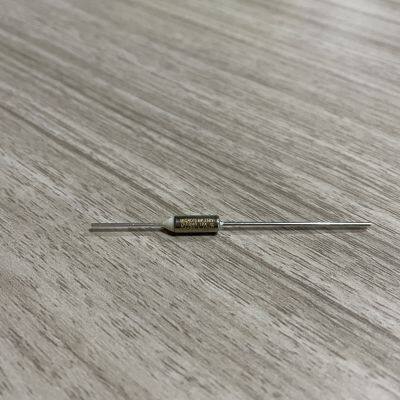

Product Description MICROTEMP® thermal fuse from Therm-O-Disc offers the broadest combination of Ministry of EconomyTrade and Industry of Japan certified temperatures and electrical loads. The active trigger mechanism of the thermal fuse is an exclusively formulated, electrically nonconductive pellet. Under normal operating temperatures, the solid pellet holds spring loaded contacts closed. When a predetermined temperature is reached, the pellet melts, allowing the compression spring to relax. The trip spring then slides the contact away from the lead and the circuit is opened. The MICROTEMP® G4 and E4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC. Electrical Ratings: 10A/250VAC Agency Recognition: PSE JET Overall Length: 63.8mm(Standard Leads) / 82.9mm(Long leads) Standard Type: MICROTEMP 250~ Zxxxxx 10A CCC E4A50 TFXXXC MICROTEMP 250~ Zxxxxx 10A CCC E4A51 TFXXXC MICROTEMP 250~ Zxxxxx 10A CCC G4A50 TFXXXC
