Higher Efficiency Dry Mixed Concrete Mixing Batching Dry Mix Concrete Batch Plant

Product Description

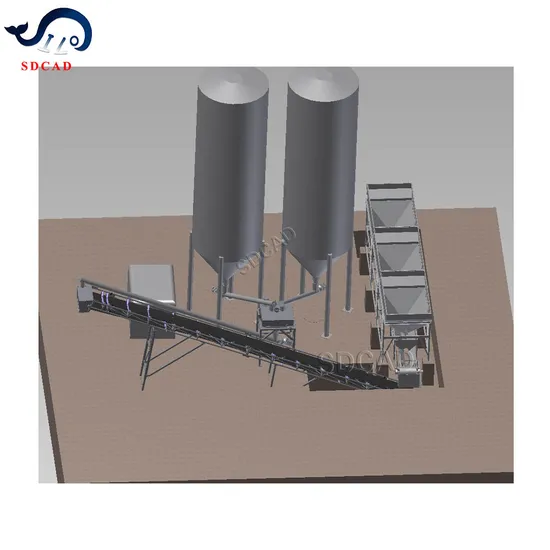

Dry Mixing Station
It is equipment that combines various ingredients to form concrete. Some of these inputs include water, air, admixtures, sand,aggregate, fly ash, silica fume, slag, and cement. It consists of batching machine, cement silo, auger, weighing system and SIEMES Auto control system, which is professional equipment for ready mix concrete production. SDCADI dry mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
FEATURES AT A GLANCE

Model	Aggregate Batching machine
Delivery capacity	100m3/h
Volume	3*20m3
Weighing way	Accumulation weighing
Weighing hopper	15m3 With around ±2% accuracy
Vibrator motor	0.09KW 200/3
Level sensor	LC-C-3t 4 sets
Air compressor	5.5KW
Belt conveyor	Belt model :Herringbone belt Length :12m Width :800mm Motor power :5.5kw
Cement weighing hopper	Volume is 1m3 Weighing scale :1t *3 sets Pneumatic butterfly valve :DN300 Simple pressure relief valve :1 set Connection section:with existing cement silo bottom discharge port
Control system	With PLC and touch screen

belt conveyor Main technical data

Model	CS-800 Herringbone belt conveyor With wheels
Width	800mm
Length	16.5m
Discharging Height	6.7m
Belt	4 layers
Hopper volume	Around 5m3
Angle	27 degree
Power of active roller motor	7.5 KW

Product display Powder silo, storage silo for bulk material,cement, flyash, etc.100t/200t/300/ customized.
PLD batching plant,Automatic batching equipment equipped with the mixer.finish automatically the batching process of sand,stone,cement etc.
Automatic Control System,it is control the whole operation and shows their working situation.Bosure control systemSiemens/Toledo customized parts for your choice.
Belt Conveyor,By conveying dry particles from top to bottom.Energy savingno noise mainte nance-free and accurate measurement.
PRODUCT SPECIFICATIONS
Product Configuration
Our After-Sale Service
*SDCADI has advanced technology in the leading industry, ensuring 100% stable and reliable product quality.
*The quality assurance period is one year after installation and debugging or 20 months after leaving a Chinese port.
*7 days x 24 hours service, with engineers responding/resolving any technical issues within 8 hours as needed. Provide
installation services for overseas engineers.
*Regular phone tracking services eliminate all possible issues and ensure the long-term security and reliability of the entire
system.
*SDCADI will consider all other customer needs, such as customs clearance, sea freight, insurance, customs tax
incentives,documents, etc.
Packaging & Transportation
Product Show
SALES AND SERVICE NETWORK
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets. How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
1Sets

---
