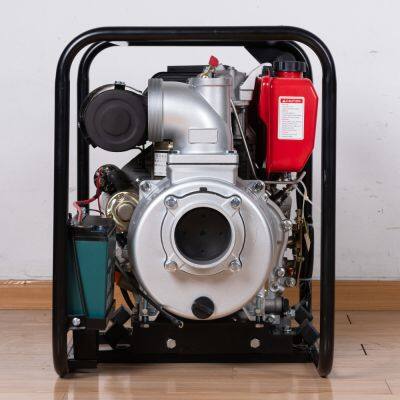

| Model | DP100LE |
| Inlet and Outlet Diameter[mm] | 100/4" |
| Flow [m³/h] | 80 |
| Lift [M] | 26 |
| Self-priming Time[s/4m] | 160 |
| Maximum Suction[M] | 7 |
| Fuel Tank Capacity[L] | Small tank: 5.5L big tank： 12.5L |
| Engine Model | 186FA/E |
| Start Method | Hand start Electric start |
| Engine Type | single cylinder、4 stroke、air-cooled、vertical |
| Bore*Stroke[mm] | 86*72 |
| Displacement[L] | 0.418 |
| Compression Ratio | 19.5:1 |
| Speed[rpm] | 3600 |
| Power [Kw] | 6.6 |
| Oil Tank Capacity[L] | 1.65 |
| Fuel No. | Diesel: 0#(Summer), -10#(Winter) |
| Oil No. | SAE10W30 (CD grade or above) |
| Size [mm] (L*W*H) | ST650*470*605/BT650*470*705 |
| Packing Size[mm] (L*W*H) | ST670*490*625/BT670*490*725 |
| Net Weight/Gross Weight[Kg] | ST69/72/BT72/75 |
