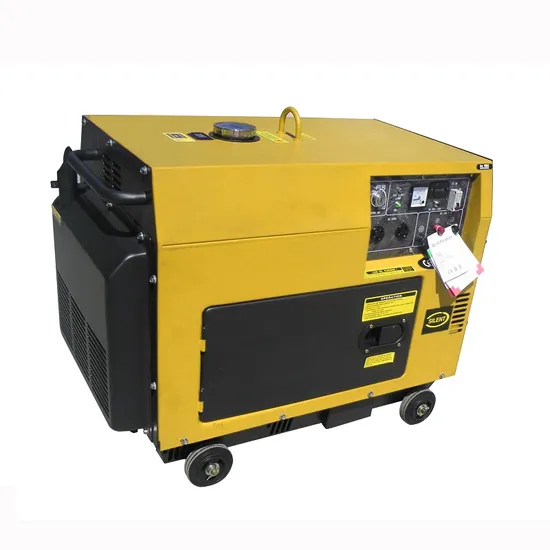

Beautiful Appearance 50HZ 7KVA 7KW 7000W Silent Diesel Generator

Product Description

1.Product Specification:

Model No	RJ9700TL
Frequency(Hz)	50/60
Rated Output(KW)	6.5/6.8
Max Output(KW)	7.0/7.7
Rated Voltage(V)	220V or as requested
Rated Currency(A)	29.5/30.9
Rated rotation speed(r/min)	3000/3600rpm
Power Factor(cos φ)	1
Pole number	2
Insulation Grade	F
Excitation mode	Self-exciation&constant voltage
Receptacle	Two receptacles
Connection pole	Without
DC 12V output	Connection pole output
Package size(mm)	945X555X700
Dry Weight(kg)	160
Working assorting weight	170
Engine Model	RJ195F
Type	Single Cyliner,vertical,four stroke,direct injection,air cooled
BoreXStroke(mm)	95*75
Displacement(ml)	532
Compression Ratio	19:1
Rated Power(KW/rpm)	8.1/3000 8.7/3600
Rated Speed	3000/3600
Lubricating System	Pressure Splashed
Starting System	Electric Start
Fuel type	0#(summer)--10#(winter)-35#(chillness) diesel
Lube oil capacity(L)	1.65
Starting motor capacity( V. KW)	12V 1.2KW
Charging generator capacity	12V 8.3A
Battery capacity (V. Ah)	12V 30Ah
Fuel consumption(g.kw*h)	≤280
Fuel tank capacity(L)	15
Continous running time	5

2.Detailed Images:



3.Product Features:
-----Strong Power&large torque
-----Stable power output
-----Powered by high-performance diesel engines
-----Portable and compact design
-----Special configurations design
-----Low oil level alarming system
-----New AVR(Automatic Voltage Regular)
-----Short circuits protection
4.Application of diesel generators:
-----Outdoor electricity supply
-----Light Tower
-----Water mist cannon/dust suppresssion sprayer
-----Electricity supply for vehicle
-----Unmanned charging piple,
-----Construction site electricity supply
-----Boat or private yachts electricity supply
5. Certifications:

6.Company Information
7.Packing&Shipping
8. FAQ
1. Q: What is the minimum order quantity?
A: Our MOQ is 50 sets for machines,500sets for spare parts.
2. Q: What payment way do you accept?
A: We accept T/T, LC,Western Union,Money Gram,Paypal etc
3. Q: What are your payment terms?
A: In principle T/T 30% as deposit, 70% as BL copy.
4. Q: Do you have samples?
A: Sample order is acceptable, but due to the high value of the engine, we cannot accept free of charge in principle.
5. Q: What is your delivery time?
A: Our delivery time is 25-30 days after we receive deposit or L/C.

---
