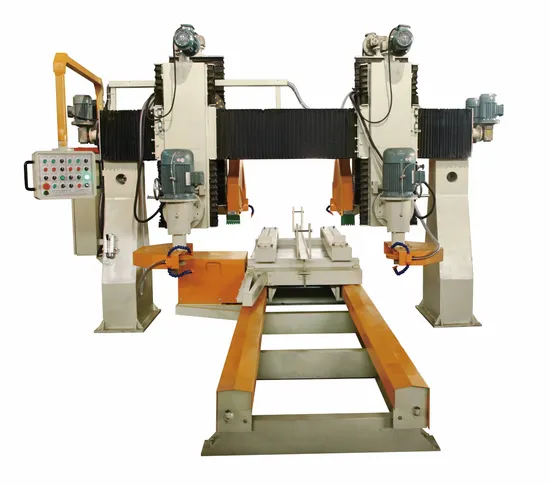

YCJ-1500 Four Blade Arc Slab Edge Cutting Machine

Product Description

Function:this machine is used for cutting end face of arc slab and vertical edge of arc slab. it is especially suitable for customer in small plant.
Brief introduction: 1, AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.
2,Cutter head moves left and right by screw rod transmission
3,Cutter head goes up and down by screw rod transmission
4,Worktable is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.

Technical parameters:

Parameters	YCJ1500
Blade diameter	Vertical cutting:Φ400-Φ600mm Surface cutting: Φ1000mm
Max Processing length	1500mm
Max Processing width	1500mm
Cutting thickness	0-100mm
Water Consumption	4m³/hour
Overall Dimension	5600×4000×2800mm
Total Power	40.5KW
Total Weight	5.2T

Electric Cabinet& Operation Panel Photos :
Exhibition: FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.

---
