Basic Info.
Nature of Source Flow
Active Inverter
Certification
CE, ROHS, ISO9001, IEC
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Pure Sine Wave on Grid Inverter
Application
Solar Power System Home
Communication with BMS
RS485 / DRM / Pocket WiFi
Efficiency
93%-97% (High Efficiency)
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Transport Package
Carton Package
Specification
330*485*135mm
Production Capacity
1000 Piece/Pieces Per Week
Packaging & Delivery
Package Size
470.00cm * 800.00cm * 300.00cm
Package Gross Weight
30.000kg
Product Description
Product Description

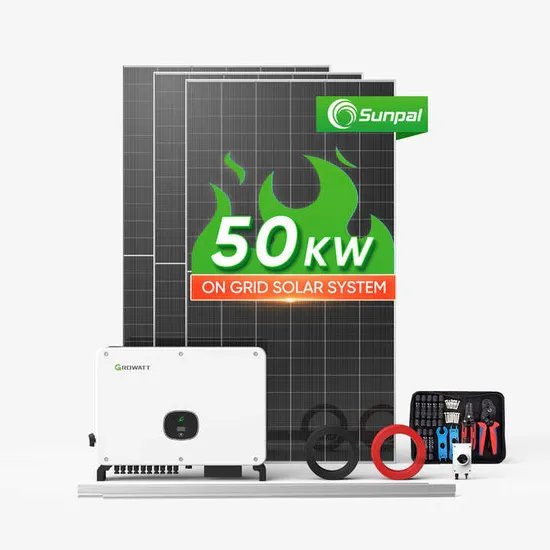

System ComponentsN Type Solar PanelPeak Power Watts: 580W
Maximum Power Voltage: 42.71V Maximum Power Current: 13.58A
Open Circuit Voltage: 51.79V
Short Circuit Current: 14.29A
Size: 2279*1134*30mm
Weight: 31.5 kgOn Grid Solar Inverter3 MPPTs
Smart diagnosis
High efficiency up to 98.8%
OLED display and touch button
AC&DC type II SPDRoof Mounting Bracket1.Metal roof2.Tile roof3.Flat roofPV Cable1.4mm² 100m2.6mm² 100mTool KitWire Cable Cutter & Stripper
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly ToolProduct Parameters
Solar Panel |
Module Type(STC*) | SP585M-72H |
Maximum power (Pmax/W) | 580 |
Open Circuit Voltage (Voc/V) | 51.79 |
Short Circuit Current (Isc/A) | 14.29 |
Voltage at Maximum power (Vmpp/V) | 42.71 |
Current at Maximum Power (Imp/A) | 13.58 |
Module Efficiency(%) | 22.44 |
On Grid Solar Inverter |
Module Type | MAC 50KTL3-X LV |
Input Data(DC) |
Max. recommended PV power(for module STC) | 75000W |
MPPT voltage range | 200V-1000V |
No. of MPP trackers | 3 |
No. of PV strings per MPP tracker | 4/3/3 |
Max. input current per MPP tracker | 52A/39A/39A |
Output Data(AC) |
Rated AC output power | 50000W |
Nominal AC voltage(range*) | 230V/400V (340-440V) |
AC grid frequency(range*) | 50/60 Hz (45-55Hz/55-65 Hz) |
AC grid connection type | 3W+N+PE |
Inverter Introduction
Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Project Case
FAQQ: What is a Grid Connected Rooftop Solar PV System?A: On grid connected rooftop or small solar photovoltaic (SPV) system, the DC power generated from solar panel is converted to AC power using power conditioning unit/Inverter and is fed to the grid. Operating modes of grid connected rooftop solar PV system can be explained. Q: What types of roofs are suitable for Rooftop solar (RTS) system?A: Rooftop solar PV systems can be installed on any type of roof having sufficient load bearing capacity. Q: Will I get same annual energy from the RTS for all 25 years?A: No. On exposure to sunlight and outside environment, the solar module lose their generation capacity and this is called degradation.
>>
