US$1,200.00-4,500.00
|
1 sets
(MOQ)
|
Basic Info.
Model NO.
SBH5/SBH10/SBH20/SBH30/SBH50/SBH100/SBH200/SBH300
Main Material
Cast Iron, Stainless Steel
Speed Control
Variable Speed
Material Processed
Plastics, Chemicals, Food
Voltage(V)
110V, 220V, 380V
Product Type
Powder Flour Mix
Operating Type
Cycle Operating
Transport Package
Standard Export Wooden Case
Production Capacity
2000 Set/Sets Per Month 3D Mixing Machine
Packaging & Delivery
Package Size
91.00cm * 69.00cm * 88.00cm
Package Gross Weight
105.000kg
Product Description

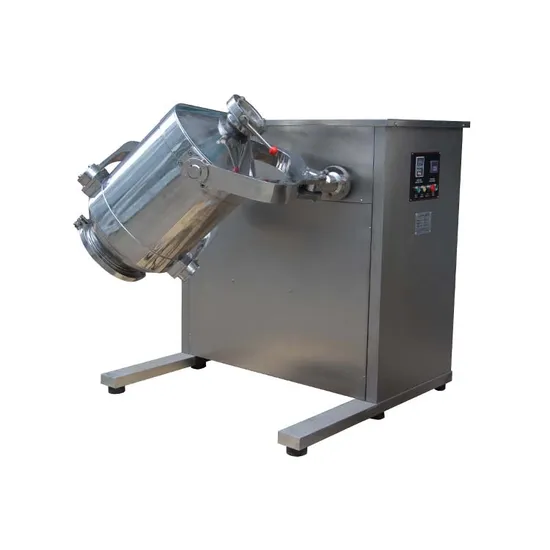

SBH mixing machine inner and outer wall is processed through polishing.Its appearance is beauty.Its mixing is uniform.Its scope of application is wide.The forced stirrer can also be equipped,according to request of client, to meet the requirements of raw materials that contain pretty fine powder.cake and certain moist stuff.1.For mixing dry powders or small granules with good flowability in Food,Chemical industry;
2.SBH mixing machine Mixing vessel volume: 10-1000L;
3.GMP design
4. Vacuum feeder can be equipped to achieve automatic feeding and prevent dust. Product Paramenters
| Model | SBH5 | SBH10 |
| Barrel volume(L) | 5 | 10 |
| Working volume(L) | 4 | 8 |
| Rotating speed(r/min) | 0-30 | 0-30 |
| Power(kw) | 0.37 | 0.37 |
| Dimension(mm) | 820*630*700 | 820*630*700 |
| Weight(kg) | 70 | 70 |
| Model | Barrel volume(L) | Working volume (L) | Rotating speed(r/min) | Power(kw) | Dimension(mm) | Weight(kg) |
| SBH-20 | 20 | 16 | 0-30 | 0.55 | 740*1000*850 | 120 |
| SBH-50 | 50 | 40 | 0-30 | 1.5 | 1000*1400*1300 | 320 |
| SBH-100 | 100 | 80 | 0-12 | 2.2 | 1200*1550*1400 | 500 |
| SBH-200 | 200 | 160 | 0-12 | 4 | 1300*1600*1500 | 800 |
| SBH-400 | 400 | 320 | 0-12 | 4 | 1500*2200*1500 | 1200 |
| SBH-600 | 600 | 480 | 0-12 | 5.5 | 1850*2500*1750 | 1500 |
| SBH-800 | 800 | 640 | 0-12 | 7.5 | 2100*2650*2000 | 1700 |
| SBH-1000 | 1000 | 800 | 0-12 | 7.5 | 2150*2800*2100 | 1800 |
FAQ How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
>>
