GJYXFCH Outdoor 1core 2core FRP Drop Fiber Optic Cable

Product Description

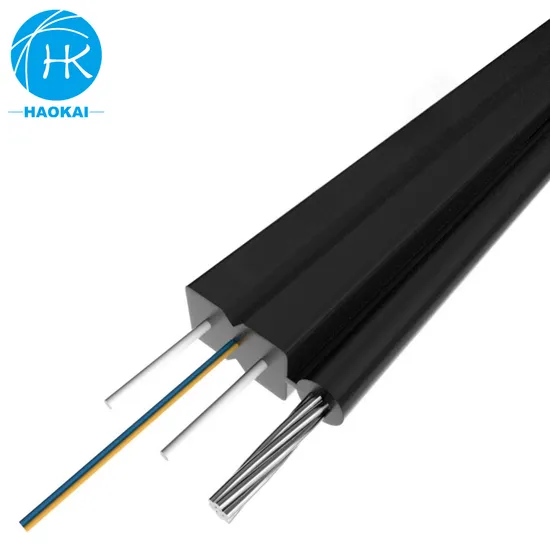

Outdoor GJYXCH G657A2 LSZH flat drop fiber optical cable Product Description GJXH optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Product application • Patch cord
• Tail cable
• Indoor pigtail | wiring | pigtail cable
Performance characteristics 1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3.Single steel wire as the additional strength member ensure good performance of tensile strength.
4.Simple structure, light weight and high practicability.

5.Novel flute design. easily strip and splice, simplify the installation and maintenance.

6.Low smoke, zero halogen and flame retardant sheath.
Detailed Photos

Product Parameters

Fiber Model	Fiber Count	Cable Size (mm)	steels specifications mm	Weight kg/km	Tensile resistance Long/short term N	Crush resistance Long/short term N/100mm
GJXH	1-4	3.0*2.0	2*0.45	10	40/80	500/1000
GJXCH	1-4	5.0*2.0	1.0+2*0.45	20	300/600	1000/2200
