Granite Rock Hydraulic Stone Impact Crusher with 50-80ton Per Hour

Product Description

Product Description
300t/h Impactor Crusher for Limestone Granite Basalt Aggregate Production Plant
Impact crusher is named according to the working principle of impact crushing to crush materials. It can crush materials with a side length of less than 500 mm. Impact crusher has the advantages of large crushing ratio, and the crushed materials are cubic particles. It is a kind of stone crushing equipment that is finer than jaw crusher. It cooperates with jaw crusher in the stone production line. The discharge particle size can be adjusted and the crushing specifications are diversified.
Impact crusher for sale is a powerful crushing machine that uses high-speed impact forces to crush kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.). The finial products it processed with a consistent product shape, widely used in various ore crushing, railway, highway and construction industry artificial sand and gravel production.
The details of our equipment
PF impact crusehr is usually used to coarse crushing, breaking or crushing of brittle materials with medium hardness or below like limestone, coal, calcium carbide, quartz, dolomite, iron pyrites, gypsum and chemical raw materials etc.
Impact crushers use impact energy to crush material. When working, driven by the motor, the rotor rotates at a high speed.
When the material enters the action area of the blow bar, it collides with the blow bar on the rotor and breaks, and then is thrown to the impact device to be crushed again, and then bounces back from the impact liner. Re-crushing in the action area of the blow bar, this process is repeated.
The material enters the first, second, and third counter-attack chambers from large to small and repeats crushing until the material is crushed to the required particle size and discharged from the discharge port.
Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the material discharge granularity and material shape.Why choose Impact crusher?
1. Impact crusher is more effective in processing materials with a large amount of moisture. It can effectively prevent material clogging. The impact crusher does not need to be equipped with a bottom sieve plate to effectively prevent clogging.
2. Impact crusher is suitable for a wider range of material hardness. The blow bar of the impact crusher is firmly fixed on the rotor with a mechanical clamping structure. When it rotates with the rotor, it has greater momentum, which is suitable for crushing harder materials, and at the same time consumes less energy.
3. It is convenient and flexible to adjust the discharge granularity. The impact crusher can adjust the output particle size in various ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber, etc. Gap adjustment can be adjusted mechanically or hydraulically.
4. The triple impact plate structure is adopted to increase the number of strikes on the material, hard extrusion, reduce friction, reduce hammer head loss, and prolong the service life of wear-resistant parts.
5. The crushed stones are popular in downstream industries and are widely used in bridge construction, highway construction, docks construction, airport construction and other projects.
usually used to coarse crushing, breaking or crushing of brittle materials with medium hardness or below like limestone, coal, calcium carbide, quartz, dolomite, iron pyrites, gypsum and chemical raw materials etc.

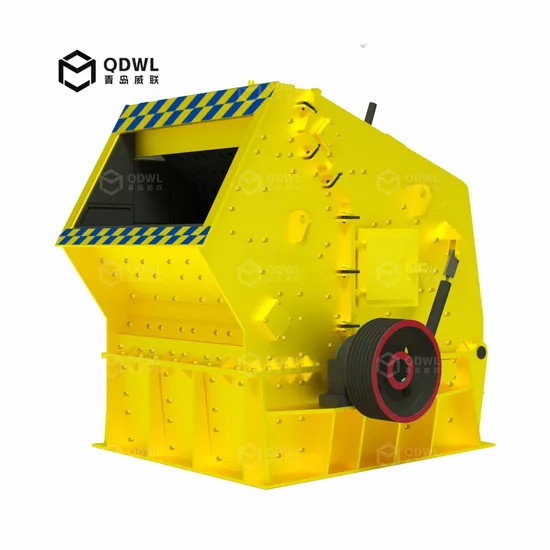

The Photos of Impact Crusher
Main parts of the impact crusher
Product Parameters
According to the size of the raw materials, the size of the output and the output of the machine, we will provide you with the appropriate crusher model. The specific parameters of each model are as follows. Please choose the crusher that suits you and I will provide you with detailed prices.
Parameters of Impact crusher

Model	Max feed size (mm)	Adjust range (mm)	discharge size (mm)	Capacity (t/h)	Power (kW)	Dimension ( L * W * H ) (mm)	Inlet size (mm)	Running speed (r/min)
PF1010	150	0-60	≤60	30-80	75KW-6	1975*1890*1645	1100*410	500
PF1210	180	0-60	<80	50-130	110KW-6	3300*2040*2650	1100*600	500
PF1214	180	0-60	≤80	80-150	132KW-6	3300*2440*2650	1500*600	500
PF1315	220	0-60	≤90	100-260	160KW-6	3470*2470*2900	1600*650	480
PF1518	300	0-60	≤90	150-350	250KW-6	3837*2872*3140	1870*995	450
PF1620	360	0-110	≤100	220-550	250KW-4*2	3340*3570*3176	2020*828	500

In order to overcome the impact of the environment on the work, we can also install crushers, feeders, conveyor belts and other equipment on the axle to make a mobile crushing production line, which not only solves the problem for customers but also improves the efficiency of their production lines.
About us
Qingdao WL Heavy Industry is a large-scale enterprise specializing in R&D and manufacturing, with a plant area of 70 acres. The equipment provided by our factory includes: crushing and screening equipment, mobile sand making equipment and other mining machinery.
Our company is located in Qingdao City, Shandong Province of CHINA .
Our company's main products include mobile crushing stations and various jaw crushers, hammer crushers, cone glass crushers, impact crushers, sand making machines and other crushing and sand making equipment, as well as concrete equipment such as concrete mixing pumps, hydraulic feeders and other equipment
Our equipment is widely used in mining, construction, chemical industry, metallurgy, transportation, water conservancy and other industries.
FAQ
1. Are you a manufacturing?
We are a factory, established in 2001.
2. How long is your delivery time?
10-30 days, if we have the machine in the stock will provide to you with 10 days , if customizd machine will take 15--30days.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
1 year, we have spare parts in the stock can delivery to you within 3days.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
6. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
7.What about the Minimum Order Quantity?
A:The MOQ is 1 piece.
8. Installation:
If the buyer ask Hongwan company to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.

---
