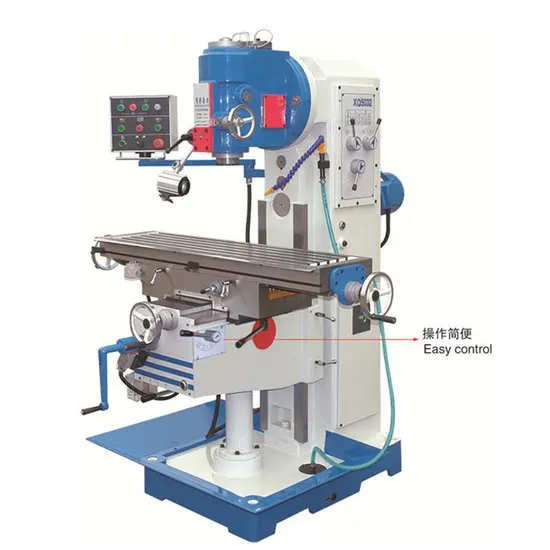

High Precision Vertical Milling Machine Price Xq5032

Product Description

high precision vertical milling machine price FEATURE
vertical univesal milling machine feature:
Driven by servo motor Table automatic feed on X,Y,Z,and Automatic rapid feed X,Y,Z, Feed speed can meet different processing requirements. The base,flselage,slide,lift slide,headstock and other major parts are made of high strength materials,and after artificial aging treatment, ensure the stability of the machine tool use for a long time. Vertical milling head can be adjusted direct and reverse rotation in vertical plane±45. Lubricating device for vertical, horizontal, vertical screw and guide rail to forced lubrication, reduce machine wear, to ensure that the machine tool Spindle with ISO50, main motor with 3kw power ensuing the heavy-duty cutting stability Hardened and ground tablesurface, guideways with longer life. SPECIFICATION
vertical univesal milling machine specifications:

Specification	Unit	XQ5032 XL5030	XQ5032A XL5030A	XQ5032B XL5030B	XQ5032C XL5030C
Table size	mm	1270X320 1270X300	1370X320 1370X300	1270*320 1270*300	1370*320 1370*300
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Distance from spindle nose to work surface	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guideway	mm	285
Swivel angle of Vertical milling head	---	±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1810	1820X1680X1810	1720X1680X1810	1820X1680X1810
Net weight	kg	1550 1500	1600 1550	1600 1550	1650 1600

vertical univesal milling machine standard accessories:

Name	Specification Model	Qty
Draw bar	M16 X430	1 set
Inner hexagon spanner	5	1
Double-ended wrench	17*19	1
Double-ended wrench	22*24	1
Lifting crank		1
Nut	M16	2
Gasket	16	2

vertical univesal milling machine optional accessorie Rotary table Digital readout Milling Churk Collet Universal dividing head Clamping kits Detailed Photos

f you are interested in heavy duty universal milling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person: Kitty Xu

---
