RTF450m Modular Impact Crushing Plant

Product Description

Product Description The Runtianzhike modular counterattack crushing station has a compact structure and integrated design, with a small construction area. The crushing host adopts new manufacturing technology and a unique structural design, resulting in a higher crushing ratio, stronger crushing capacity, and finished products that are cubical with no tension or cracks. The particle shape is good, and the size of the discharge particle can be adjusted by hydraulic pressure, with diversified crushing specifications. It has a low investment cost and good economy.
Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing processes, as well as for crushing all types of mine rocks. It is suitable for industries such as highway, railway, water conservancy, electricity, and construction. It is used for the production of sand and stone for construction purposes and for crushing and recycling various types of slag, cave slag, waste asphalt concrete, and tailings and waste rock.

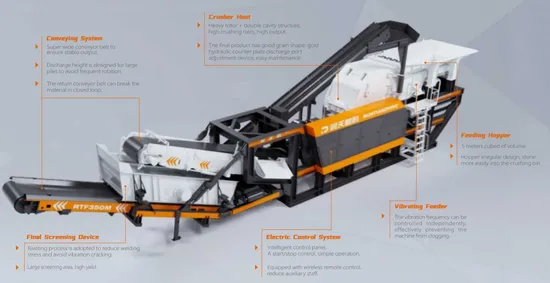

Detailed Photos
Product Parameters

RTF450M Modular Impact Crushing Plant
Feeding Device	Max.feeding Size 700mm
	Hopper Volume 6m³
Vibrating Feeder	Vibrating Motor Power 2*5.5kW
Crusher	Crusher Mode Np1415
	Crusher Motor Power 280kW
Main Conveying Belt	Belt Width B1000mm
	Power 15kW
MixedMaterial ConveyingBelt	Belt Width B1000mm
	Power 11kW
Returned Materia Conveying Belt	Belt Width B650mm
	Power 5.5kW
Transmission Conveying Belt	Belt Width B500mm
	Power 3kW
Vibrating screen	Number of Sieve Layers 2
	Screen MeshSrea 6000mm*1800mm
Whole Machine	TotalPower 364kW
	Total Weight 62t
	Working Mode External Power Supply
	Working Dimension 21m×10m×5.3m

---
