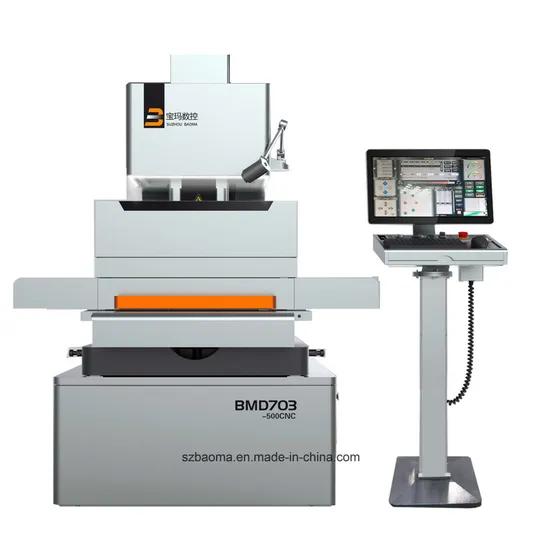

Baoma CNC Small Drilling EDM Machine Bmd703-400CNC

Product Description

independent intellectual property rights in software ,brand -new design Real time record for basic function operation and parameter adjusting With powerful tested parameters database Customized 4th-8thaxis available Full protection LED lamp Pump pressure check and adjust window 21'touch screen LCD remote control box Save labor ,be efficient,more accurate SUZHOU BAOMA machine higher cost performance INTRODUCTION: 1. Control system with BAOMA independent intellectual property, can prepare a new program during drilling
2.LAN port connection more stable and easy to troubleshoot and maintenance.
3. Internet + function can remote monitor drilling condition.
4. UG\SOLIDWORKS\AUTOCAD software can be used for programming
5. Professional and efficient digitized High Frequency system can real time monitor the drilling condition and adjust the HF power to improve the drilling efficiency.
6. Intelligent database based on a large number of testing for different machining requirement and can be upgraded for free.
7.LED hand remote control box with coordinate display function.
8. Basic function of control system
a.Operation and input: touch screen, keyboard and mouse.
b.1 absolute coordinate,6 relative coordinates facility for positioning and machining.
c. Function of drawing coordination conversion, zoom, rotation, tracing and displaying.
d. Auto Short circuit manage function
e. Memory function, Auto stop once finishing, stop point setting functions
f. Auto edge fining, centering function
g. Process path program, interpolation function
h. Menu technology, Auto program function
i. G code and other files management, Internet date transfer, flash disc reading
j. Auto-repair the electrodes.
k. Gap servo follow function
l. Auto clear Z axis, depth setting function
m. Function shift manual or CNC mode machining.
.LAN PORT FOR INTERNET FUNCTION
2. Real time monitor for operation and modification of parameters.
3. Linux operation system, control system build in IC of control module with Libre CAD drawing software. Auto transfer between drawing and points machining by convert software. New program can be prepared during machining.
4.Auto edge finding, centering, coordinate setting, original finding, transfer between absolute coordinate and relative coordinate, DXF file reading generated by UG\SOLIDWORKS\AUTOCAD and changing to points machining. G code can be read. Databases function.

CNC EDM Hole Popper BMD703CNC	BMD703-400CNC
Worktable size(L×W)mm	466×330
Table travel(X×Y)mm	400×320
Z axis travel mm	300+(320)
Max. drilling depth mm	0-300
Max. drilling speed mm2/min	60
Max re-track speed of spindle mm/min	320
Max. working current A	30
Electrode diameter	0.2-3.0
Load of table kg	300
Working solution	Water/Saponification
Working reservoir capacity L	30
Power supply	380V AC/50 Hz or 415V AC/50 Hz
Max. Power consumption KVA	3.5
Machine dimension mm	1120×1005mm×1915
Package dimension mm	1400×1450×2050
Machine weight kg	900
Controller type	Automatic 3 axis
Digital Display	X,Y,Z axis
Function of setting depth	yes
Function of group drilling	yes

---
