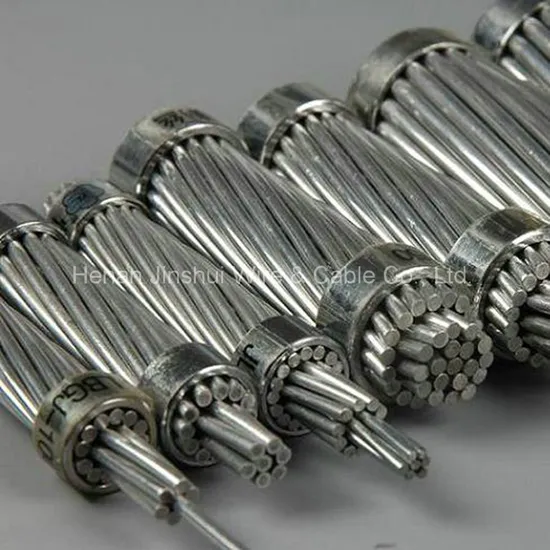

High Tensile ASTM Standard Overhead AAAC Conductor

Product Description

Standard
ASTM B399: Standard Specification for Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ASTM B398: Standard Specification for Aluminum-Alloy 6201-T81 and 6201-T83 Wire for Electrical Purposes

Application
This AAAC Conductor is used in high voltage overhead power transmission lines. Using high tensile strength aluminum alloy wire, AAAC has much larger breaking load than AAC. Compared with ACSR, it has better corrision-resistant performance and can avoid the magnetic loss.

Product Details
1) Conductor material: hard drawn aluminum alloy wire
2) Resistivity @ 20ºC: 32.840 nΩ·m
3) Min. tensile strength: 325 MPa (Φ 3.5mm and below), 315 MPa (above Φ 3.5mm)
4) No. of stranded wires: 7, 19, 37, 61, 91, 127
5) Sectional area: 30.58~1000 MCM

Cable Specification

Packaging

Polyethylene film packaging 1) Usually used for cables with an overall diameter 10mm and below 2) 100 meters per roll or as per customer's requirements 3) Packaging dimension: 50cm * 50cm * 20cm or below 4) Weight: 30 kg/roll or below	Steel-wood or wood drum packaging 1) Used for cables with a overall diameter of 10mm and above 2) Drum size: 180cm * 180cm *110cm (different sizes are available according to packaging length) 3) Standard length: as per customer's requirements. 4) Wood wood lagging

Factory

Service
1) Select the right cable as per customer's requirements
2) Design suitable packaging to guarantee safe and the most economic delivery
3) Provide installation and use guidance
4) Product quality guarantee under the normal use

---
