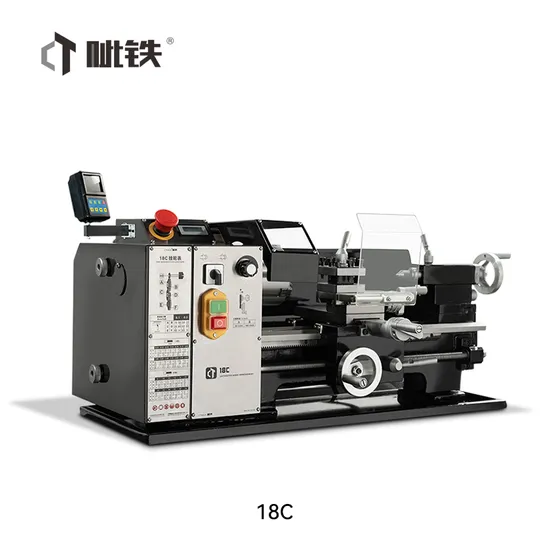

China Factory Small Lathe 18c Mini Bench Lathe Easy Use and Cheap Price

US$1,050.00
1-2 Pieces
US$1,000.00
3-5 Pieces
US$960.00
6+ Pieces

Basic Info.

Model NO.
18C
Processing Accessory
Work Piece
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station Tool Holder
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Produce Capacity
1000
MOQ
1
Feature
High Precision
HS
8458190000
Transport Package
Standard Woodcase Packing
Specification
740*390*310mm
Trademark
CTMACH
Origin
China

Packaging & Delivery

Package Size
76.00cm * 50.00cm * 48.00cm
Package Gross Weight
68.000kg

Product Description

Maximum turning diameter bed 180mm
Maximum turning diameter of middle carriage 110mm
Two top distance 300mm
Spindle speed range/Grade 50-2500rpm
Taper of spindle bore MT3
Spindle bore 21mm
Tailstock quill travel 50mm
Taper of tailstock quill MT2
Turning tool height 10mm
Cross slide travel 85mm
Top slide travel 75mm
Range of metric threads/Grade 0.25-3.0mm/14
Range of inch threads/Grade 8-44TPI/12
Range of longitudinal feeds 0.1/0.2mm/u 2
Noise <75dB
Motor 220v/600w 50HZ
N.W./G.W. 55/68KG
Machine size 740×390×310mm
Packing size 760×500×480mm
