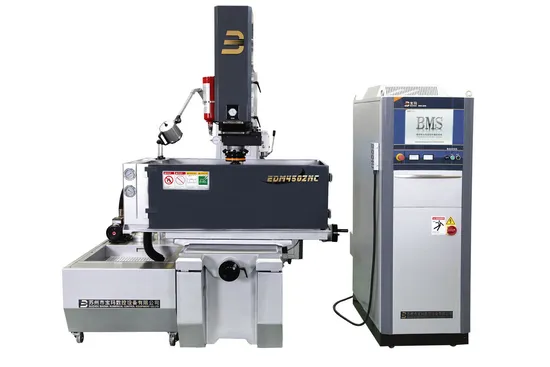

EDM Die Sinker Machine EDM450znc

Product Description

EDM Die Sinking Machine [ EDM450 ]
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole

Parameters		UNIT	EDMN450ZNC
Working Tank (LxWxH)		mm	1200 x 650 x 450
Table Size (LxW)		mm	700 x 400
Travel Size	X	mm	450
	Y	mm	300
	Spindle Travel(Z)	mm	200
	Auxiliary Travel(Z)	mm	200
Distance between Spindle Nose to Work Table	Min.	mm	58
	Max.	mm	450
Max. Table Load (Workpiece weight)		mm	1000
Max. Spindle Hold (Electrode weight)		kg	150
Oil Tank		L	470
Oil Tank Dimension (LxWxH)		mm	1260 x 780 x 450
Control Method			DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	1800 x 1500 x 2200
Machine Weight		kg	1800

---
