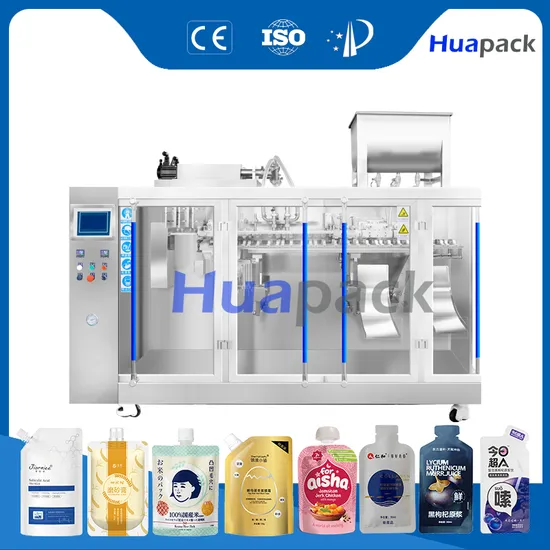

Horizontal Automatic Full Function Premade/Preformed Bag Corner Spout Pouch Filling Sealing Packing Packging Packer Machine for Liquid/Soap/Drink

Product Description

Shanghai factory premade pouch bag sachet packing machine with CE certificaiton Huacheng HC-GN series is engineered in a simplified design with Linear module to fill Pre-made pouches from top and sealing in same machine.
It is equipped with a stainless steel, low maintenance and easy to change sizes, which moves the pouches through the station in a continuous motion.
HC premade pouch packing machine has the wide range of different sizes and shapes in the market.
Our machines cover all the applications and are customized to be adapted to our customers' needs.
The design is based on the modular frame construction, composed of three independent modules: bag picking and dosing-sealing.

Product Parameters

Simplex model	180GN	210GN	240GN	280GN	330GN
Min(W*H)	65×130mm	90×130mm	110×140mm	120×150mm	110×150mm
Mix(W*H)	180×250mm	210×330mm	240×350mm	280×400mm	330×500mm
Packing volume(Max)	1000ml	1500ml	2000ml	3000ml	4000ml
Speed(Bag/min)	≤60	≤60	≤60	≤45	≤40
machine sizes (L*W*H)	2300×980×1400	2550×1100×1400	2760×1100×1400	2900×1100×1400	3475×1215×1600
weight	1100kg	1200kg	1400kg	1500kg	1800kg
temperature	-10ºC-+55ºC	-10ºC-+55ºC	-10ºC-+55ºC	-10ºC-+55ºC	-10ºC-+55ºC
moisture	below 85%	below 85%	below 85%	below 85%	below 85%
voltage	AC380V,50Hz	AC380V,50Hz	AC380V,50Hz	AC380V,50Hz	AC380V,50Hz
pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
air	150L/min	560L/min	300L/min	350L/min	300L/min
power	3.5Kw	4.5Kw	4.5Kw	4.5Kw	4.5Kw

Duplex model , packing double bags per time

Duplex model	180DG	240DG	330DG
paramters	60×130mm	90×140mm	90×140mm
	90×250mm	120×330mm	165×450mm
	300ml	500ml	1000ml
	≤120	≤120	≤80
	2300mm×1100mm×1400mm	2760mm×1100mm×1400mm	3475mm×1215mm×1600mm
Machine weight	1100kg	1400kg	1800kg
work condition	-10ºC-+55ºC	-10ºC-+55ºC	-10ºC-+55ºC
	below 85%	below 85%	below 85%
	AC380V,50Hz	AC380V,50Hz	AC380V,50Hz
	0.6Mpa	0.6Mpa	0.6Mpa
	300L/min	350L/min	400L/min
	3.5Kw	5.5Kw	5.5Kw

Our Advantages 1) HMI Display includes instruction manual and troubleshooting
2)Parallel motion of the top sealing bars enables for improved sealing quality and easier maintenance.
3)Adcanced Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5) Multiple steps of hot and cold sealing are needed to guarantee sealing quality
6) filling : allow hot and cold filling
Detailed Photos

1.coding	cold press code or touch code form, date QR code, bar code can be realized
2.easy notch	easy notch cutting
3 Hanging hole	round hole or euro hole
4.paging bag feeding	Independent bag picking device to realize automatic bag taking from multi-bag boxes, suitable for big bags, zipper bags and other bag shapes
5.zipper open(optional)	increase the zipper opening station for zipper pouch
6.top spout (optional)	adding top spout inserting station
7.corner spout (optional)	adding corner spout inserting station
8.double time filling	increase the speed by double-head filling for big package
9.bag support	adding bag support for big package
10 conveyor	select the finished product conveyor belt to transport

Certifications
Our Service 1.We can provide single machine or whole packing system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. 1 year warranty for main machine and 1 year spare parts
4. Contact us any time when you feel free.

Company Profile
HUAPACK are a technical-driven company in the manufacturing of horizontal sachet and pouch packaging machinery, bottle filling lines for a wide range of different sectors, like retail food & Beverages, pharmaceutical, cosmetic or chemical products, in many other applications, working from rollstock or pre-made pouches.Our strong knowledge of this industry allows us to provide optimal customized solutions to each customer with the highest level of features, and the finest quality & Innovative packages.We are committed to running our business in a sustainable way. And we sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

Packaging & Shipping
FAQ
Q1: Can your machine meet our need well?A1: We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
Q2: Are you a factory or a trading company?A2: We are the manufacturer, and have four experts who have more than ten years experience in packaging machine industry.
Q3: Warranty and after-sales serviceA3: One year warranty and 1 year spare parts, 24 hours online technical service and solution can be offered, OEM, Customized can be all accepted.
Q4: How can you ensure the machine's quality after we put the order?A4:Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
Q5: We are afraid you won't deliver us the machine after we pay you the money.A5: Please note our above business license and certificates.

---
