Ua Industrial Heavy-Duty Woodworking Aluminum 1325 Atc CNC Router with Syntec Controller

Product Description

UA Industrial Heavy-Duty Woodworking Aluminum ACP 1325 Atc CNC Router with Syntec Controller
Product Description

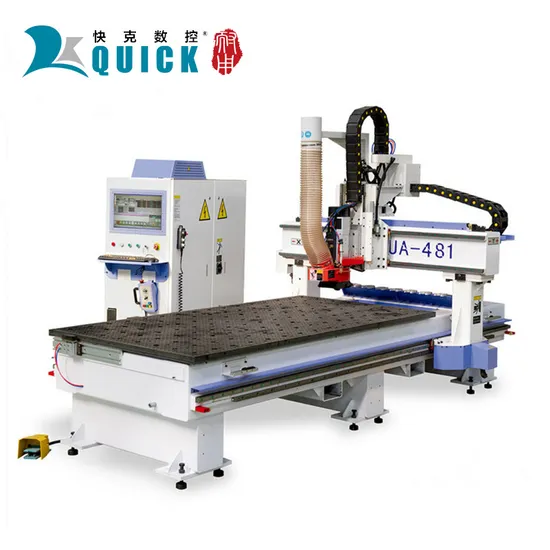

UA-481 is a master-class CNC machining center. It uses the best parts in the world with a tempered heavy-duty bed,it can meet your machining requirements with the highest quality.
8 pcs linear tool changer make it easy to complete highly complex jobs.
The best German Becker pumps and China Tongyou pumps for you to choose.
Can be upgraded to a rotating spindle for processing the side of the sheet.
The working size can be designed to 1300x2500 ,1530/2030/2040 is also an option.
Today, UA-481 is dedicated to solid wood furniture manufacturing and soft metal processing.
Product Parameters

SPECIFICATION
X-Y-Z axis working area	1200 x 2400x 200mm
Repositioning resolution	0.02mm
X-Y-movement	Rack and pinion, gear drive
Z movement	Ball screw drive
Guide	Linear 30 square/Taiwan
Max. speed	80m/min
Max. cutting speed	50m/min
Spindle power	9kw HSD air cooling
Spindle speed	18000- 24000 RPM
Inverter power	11KW
Tool Type	Linear tool changer with 8 tools
Drive motors	850W Yaskawa servo motor
Working voltage	AC380V/50-60Hz,3-phase
Command code	G code
Computer interface	USB 2.0
Table	Vacuum table
Control system	SYNTEC system
Pump	7.5kw wind pump
software	Artcam ,Alphacam copy
Dust system	dust hood for spindle
Standard enquipment included	1. Auto tool length compensation device 2. Manual oil lubrication system 3. Dust hood 4. Tool shanks 5.Position pins
Optional	1)Carousel tool magazine 2)Drilling boring system 3)Double working stations 4)Auto Loading&Unloading system 5)Becker pump

Detailed Photos

CNC controller, SYNTEC TAIWAN 21A New three-axis linkage motion mode to achieve comprehensive controlling Support drive and spindle error alarm function Large storage space,fast reading speed and reliable processing. Support intelligent file checking function. Parameter backup and restore function to prevent the loss of important parameters. High anti-jamming intensity passes many CE tests.
	Vacuum Table double layer vacuum table Good sealing, good suction
(HIWIN, Taiwan) Precision N class liner guide way with precision less then 0.02mm The liner guide way has middle preloading design,features of high precision and stability may prolong liner guide way.(HIWIN, Taiwan) liner guide way's special dust prove design,makes the guide way still moving smoothly in worst environment.
Japan Yaskawa servo motor 850W YASKAWA, Japan servo motor,this is newest type, With high speed, high precision. Motor's max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high
spindle 9.6KW HSD -Italy ER 32 Speed 24000rpm air cooling spindle

Our Advantages
1. Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam, Typ3, UG, Artcam).
2. Its advantage is that this machine is durable and has high processing precision. Using this machine will greatly improve work efficiency. The gantry is welded by a thick seamless steel structure; it is treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform. The machine bed and frame are welded with 12mm thickness of steel tubes. heavy-duty machine bed. Heated with 650 degrees temperature treatment and will not be deformed for 20 years and ensure stale moving. Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for a long time, avoid the broken knife, more stable, durable.
After Sales Service
Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in china Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.

FAQ
A. Communication:
1.We recommend the product that suits you in time, you only need to respond, we will give you a satisfactory answer.
2. 24hours online service, free technical support by whatsapp/wechat/call/emails.
B .Technical support:
1. Technical support by phone, email or whatsapp/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas C. Quality assurance:
1. Machine Testing: To ensure the quality and stability of the machine, we use the most advanced production and testing equipment, to check the quality and performance of our industrial cnc equipment in each production step to ensure our equipment quality and stable performance.
2. Quality: In order to guarantee the performance and quality of our products, we strictly control all processes, assembly, our equipment quality, and delivery.
D. After sales services:
1. The machine has a one-year warranty, with spare parts provided within one year, and lifetime maintenance
2. Normal machine is properly adjusted before dispatch.You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/whatsapp/tel and lifetime technical support.
Packaging & Shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
Company Profile
1. Jinan QUICK specializes in the research and development of woodworking engraving machines. It has been manufacturing for 14 years. Our company covers an area of 1600 square meters and has more than 200 employees. It has independent machine body processing workshops and machine assembly workshops. QUICK is a powerful company. Every production process of our machine has strict quality inspection and has obtained CE, ISO and other certifications.
2. Our woodworking engraving machines are sold to more than 90 countries worldwide, and we have agents in many countries such as the United States, Canada, Mexico, Malaysia, Indonesia, Russia, the United Kingdom, South Korea......

---
