| US$12,550.00-15,353.00 | 1 Set (MOQ) |

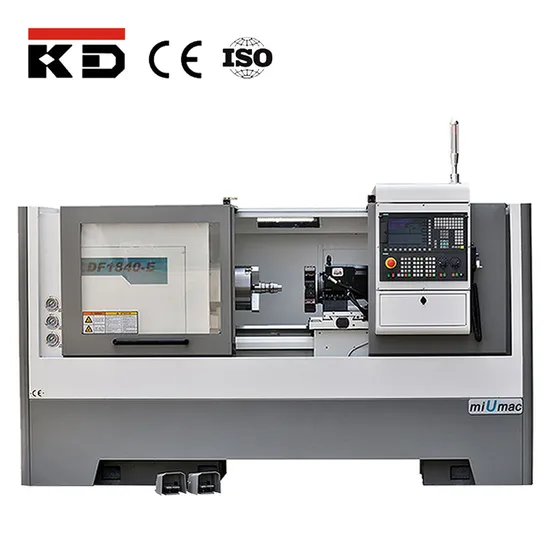

| MODELS | CK6140ZX | CK6146ZX | CK6150ZX |
| CAPACITY | | | |
| Max.swing over bed | Ф400mm | Ф460mm | Ф500mm |
| Max.swing over carriage | Ф210mm | Ф240mm | Ф280mm |
| Max. length of workpiece | 750/1000/1500mm | 750/1000/ 1500mm | 1000/ 1500mm |
| Max.turning length | 600/850/1350mm | 600/850/1350mm | 850/1350mm |
| 6-way turret Max.turning length | 430mm | 430/680/ 1180mm | 680/ 1180mm |
| 6-way turret Max.turning diameter | 280mm | 340mm | 340mm |
| TRAVEL | | | |
| Max.cross travel(X) | 250mm | 280mm | 280mm |
| Max.longitudinal travel(Z) | 710/960/1460mm | 710/ 960/ 1460mm | 960/ 1460mm |
| FEED | | | |
| Rapid feed for axis X | 8m/min | 8m/min | 8m/min |
| Rapid feed for axis Z | 10m/min | 10m/min | 10m/min |
| SPINDLE | | | |
| Spindle nose | D8 | D8 | D8 |
| Spindle bore | Ф80mm | Ф80mm | Ф80mm |
| Taper bore of spindle | M.T.NO.7 | M.T.NO.7 | M.T.NO.7 |
| Steps of spindle speed (manual) | Variable | Variable | Variable |
| Range of spindle speed | 100~2000rpm | 100~2000rpm | 100~2000rpm |
| TOOL POST | | | |
| Tool post stations | 4-way, 6-way, 8-way | | |
| Tool cross section | 25×25mm | 25×25mm | 25×25mm |
| TAILSTOCK | | | |
| External diameter of tailstock sleeve | Ф75mm | Ф75mm | Ф75mm |
| Taper bore of tailstock sleeve | M.T.NO.4 | M.T.NO.5 | M.T.NO.5 |
| Max travel of tailstock sleeve | 130mm | 130mm | 130mm |
| OTHERS | | | |
| Min. input | 0.001mm | 0.001mm | 0.001mm |
| Main motor power | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) |
| Coolant pump power | 75w | 75w | 75w |
| Overall dimensions(L×W×H) | 2060×1180×1500mm | (2060/ 2310/ 2790)×1180×1500mm | (2310/ 2790)×1180×1500mm |
| Net weight | 2100kg | 2200, 2350, 2900kg | 2350, 2900kg |
