Innovative Double Side CNC Lathe Machine for Complex Metal Parts

Product Description

Crafted to perfection, our lathe machine accommodates single spindle operations with precision, handling lengths ranging from 200mm to 800mm seamlessly.
For more extensive projects, the double spindle option caters to lengths spanning 800mm to 3000mm, ensuring efficiency and superior performance.
Engineered with excellence, the inclined double side turrets on our CNC lathe machine are specifically designed for efficient and accurate machining of complex metal parts.
Product Description

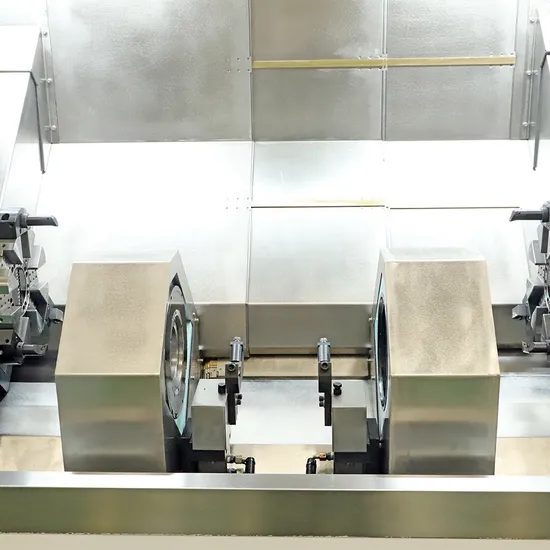

Behold the cutting-edge double side turning CNC lathe machine, a marvel in precision engineering.
Primarily crafted for the intricate art of shaft workpiece turning, this machine handles dual-sided operations with unmatched efficiency.
Optionally equipped with a Y-axis milling power head turret, it offers enhanced versatility and capability for complex tasks.

double sided turning machine processing size details
MODEL	spindle type	WORKPIECE LENGTH (mm)	X/Z WORKPIECE LENGTH (mm)	Y axis / power head turrets
XSC500	single spindle	500	300/250X2	optional
XSC700		700	300/350X2
XSC800		800	300/400X2
XSC1000	double spindle	1000	250/400X2
XSC2000		2000	350/900X2
XSC3000		3000	400/1400X2

double sided turning machine details PARAMETER	UNIT	XSC800
Machine Type		45°slant bed
Spindle Type		single spindle + center holder
Tool Holder Type		Electric/servo
Tool Holder Station		4/8/12 station
MAX. Workpiece Length	mm	800
MAX. Workpiece Diamete mm		72/120/160/200
X Axis Stroke Distance	mm	300
Z AxisStroke Distance	mm	400*2
X/Z Axis Fast Move	mm/min.	45
Processing Coaxiality Spindle Power	mm	24
	kw	5
Spindle Speed	mm/min	2000/1000/500

Detailed Photos
| DETAIL PRESENTATION
AUTOMATION FUNCTIONS
Our advanced engineering enables the independent development and production of both upper and lower silos. These are enhanced with cutting-edge features such as automatic axial positioning, reliable workpiece in-place detection, seamless automated interfaces, and precise automatic counting.
SPINDLE & TURRET
Our machine boasts an imported P4 grade spindle, renowned for its stable performance, exceptional rigidity, and precision. The hydraulic clamping mechanism provides a robust clamping force, ensuring optimal operation.
GRAVITY ROLLER CONVEYOR
Designed for compatibility with roller conveyors and automated robotic operations, this system significantly enhances work efficiency by streamlining workflow processes.
CNC SYSTEM
Featuring a dual channel bus absolute value servo system, this innovation eliminates the need for resetting when powered on, allowing for immediate use as required.
| PRODUCT SHOOTING
Introducing the center drive dual-tooling turret series: it boasts an impressive coaxiality of both ends reaching up to 0.01 mm. Experience a fully automatic production process with an option to upgrade to a multifunctional power turret for enhanced capabilities.
Company Profile
Shandong Youtai Machine Tool Manufacturing Co., Ltd. (YOTMT) stands as a beacon of technological innovation and excellence in China's dynamic CNC machinery landscape. A high-tech enterprise, YOTMT seamlessly fuses research, production, sales, and service into one cohesive powerhouse, positioning itself as a luminary in the realm of high-end, efficient CNC machinery specialization.
Renowned for its expertise, YOTMT dedicates itself to the pioneering research, development, and crafting of cutting-edge special machine tools and bespoke combined machine tools.
Established in 1998, the legacy of YOTMT took root in Tengzhou City, Shandong Province, where the brand was officially launched in 2011, marking a new era of innovation.
Boasting a substantial registered capital of 220 million yuan, YOTMT's sprawling 30,000-square-meter facility is a hub of advanced manufacturing, equipped with state-of-the-art processing, welding, sandblasting, powder coating lines, and two automated heat treatment lines, epitomizing modern industrial sophistication.
YOTMT's product portfolio is a testament to versatility and precision, offering an impressive range including multifunctional CNC milling machines, single-spindle, multi-spindle, double-sided CNC lathes, custom-designed integrated special machine tools, alongside high-precision universal CNC lathes and machining centers, adeptly addressing the intricate processing needs of diverse complex components.
Industries around the globe trust YOTMT's machinery, widely utilized in aerospace, automotive, energy, and engineering sectors. Their reach extends to over 70 countries and regions, facilitated through a robust network of agents and trade partners.
Guided by the principle of 'scientific innovation and quality first,' YOTMT remains steadfast in its commitment to 'honesty-based and customer-oriented' service, ensuring customer satisfaction and trust.
YOTMT's pursuit of excellence is recognized through the ISO9001 quality management system certification. With prestigious national honors such as the National Quality Trustworthy Product Certificate and the National Famous Brand Product Certificate, their accolades are a testament to their high-tech prowess and commitment to quality.
Backed by a formidable research and development team, along with a stellar management team, YOTMT continuously unveils novel products and groundbreaking technologies tailored to market demands, ensuring clients receive unparalleled products and comprehensive after-sales service.
YOTMT's innovation is further highlighted by its extensive portfolio of over 70 national patents, covering groundbreaking inventions in structural design, control systems, and CNC machine tool intelligence.
Garnering accolades from the China Machinery Industry Federation, YOTMT's distinction is celebrated with awards such as the 'China Machinery Industry Science and Technology Award', 'China Machinery Industry Excellent Brand', and 'China Machinery Industry Quality Award', solidifying its esteemed status in the industry.
Strengthening its innovation and excellence, YOTMT collaborates closely with leading universities and research institutes, playing a pivotal role in numerous national and provincial key scientific and technological projects, yielding impressive results and societal benefits.
YOTMT's commitment to quality and innovation has propelled it to the forefront of the Chinese market as a trusted brand and quality benchmark, a testament to its relentless pursuit of excellence.
Certifications
| Certifications & Activities
Shandong Youtai Machine Tool Manufacturing Co., Ltd. boasts superior research and development technology, along with a wealth of patents,
partnering with numerous large-scale enterprises. Our rich experience in crafting state-of-the-art automated production lines makes us the brand of choice for modern factories. Our products enjoy a thriving presence in the global market, a testament to their excellence and innovation.
