Small Mass Production CNC Lathe Machine Tool Equipment Linear Guide Horizontal Turning and Milling Machine

Product Description

Product Description

CNC Lathe MachineThe CNC Machine adopts an overall bed design and is equipped with an automated feeding mechanism. It uses a two-jaw hydraulic chuck specifically for small screws. Together with the vibrating disc feeder customized by our factory, one person can operate multiple devices and complete automated processing of batch products. It has the advantages of high efficiency, high degree of automation, saving labor costs, and reducing labor intensity of workers.

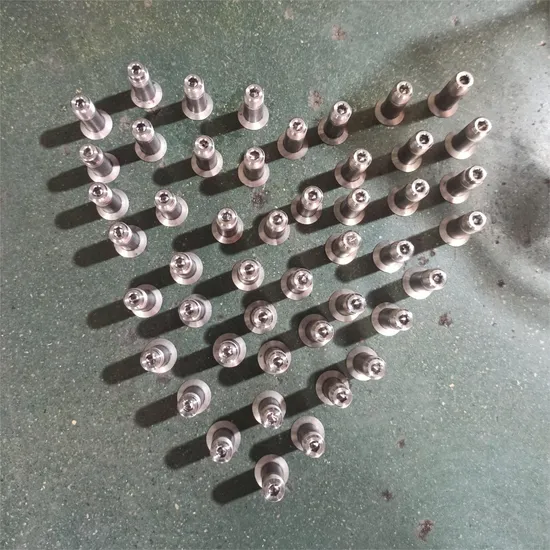

Detailed Photos
Technological Process1)Put the parts in vibrating disk.
2)Feeding the parts to Receiving die.
3)Feeding the parts to center of the chuck using Receiving die.
4)The rear feeding cylinder pushes the product to the three-claw reclaiming cylinder.
5)Lower the upper and lower cylinders into place and align the workpiece with the center of the spindle.
6)The front feeding cylinder feeds forward.
7)Chuck clamping.
8)The cylinders return to their original positions in sequence.
9)The lathe starts processing the product.
10)After product processing is completed, the lathe tool stops at the designated position.
11)The chuck is released and the workpiece is ejected to the material receiving device.
12)Repeat the steps 1-2-3-4-5-6-7-8-9-10-11.
We can customize the technological process of the machine according to the customer's drawings and processing requirements.
Product Parameters

Item	Name	Specification
Work Range	Max. rotation Diameter	Φ420mm
	Max. work diameter(Disk)	Φ400mm
	Max. work diameter(Shaft)	Φ150mm
	Max. work length	300mm
	Max.hole diameter	Φ40mm
Stroke	Effective stroke(X-Axis)	350mm
	Effective stroke(Y-Axis)	300mm
	X/z Axis moving speed	20m/min
	X/z Servo motor	4Nm/6Nm
Main Shaft	Type	A2-5
	Hole diameter	Φ45mm
	Max. Rmp	2500
	Motor	4KW
Customized Vibrating Disk	Working voltage	AC220V
	Working air pressure	0.5MPa~0.7MPa
	Frequency range	50/60Hz 100/120Hz
	Output power	1100VA
	Vibrating disk weight	30KG
	Vibrating disk volume	base diameter 200mm, disk diameter 300mm, height 360mm
	Scope of application	Lifting and feeding of various batch products
	Discharge height	based on the feed height of CNC lathe
Others	Shank specification	Φ20*20
	Boring bar specification	Φ20mm

We can customize the machine structure according to
the customer's drawings and processing requirements.
Support Customization
Company Profile
Ronen expertise can be found in the most varied Fastener Equipment end products.
We reliably accompany you through everyday life. Mostly unnoticed.
After all, our precision-Fastener parts and Cold Forging Technology are embedded into the products of our customers and, although not always visible,they fulfil mission-critical functions there.
FAQ
1.-Are you a manufacturer or trading company?
-We are a manufacture and we have more than 20 years experience in producing fastener machine. 2.-What about your price? -Our price is the standard price, based on the product drawing or size. 3.-How about the shipping? -It depends on your choice, and we have the shipping partners of many years of experience. And we have rich experience in customs clearance. We have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. 4.-Do you offer after-sale service? -Yes, we provide lifetime warranty of the machine.

---
