32inch X10mm Extra Heavy Duty Disc Harrow Disc Plough for 180-500HP Tractor

Product Description

Product Description

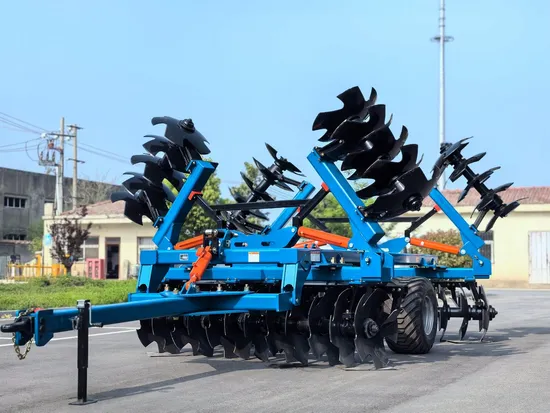

Lishi 910 Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 2.8m-6.2m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to25- 30cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 810mm, thickness of 10mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter

Item	unit
Mode		810-2.8	810-3.3	810-5.0	810-6.2
Disc No.	pcs	20	24	36	44
Working width	mm	2800	3500	5000	6200
Space	mm	280	280	280	280
Disc Size	mm	32''χ10	32''χ10	32''χ10	32''χ10
Approx. net wetgth	kg	4000	4500	6200	7800
Matched power	hp	180-200	200-240	300-400	400-500
