China Industrial Hydraulic Radial Drilling Machine (Z3040X10-1)

US$3,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040X10-1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model
Z3040X10-1
Color
Green
Size
200*800*2400mm
Weight
2200kgs
Max Drilling Dia(Steel/Iron)
35/40mm
Spindle Taper
Mt4
Distance Between Spindle to Column
350/1300mm
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets

Product Description

Product Description

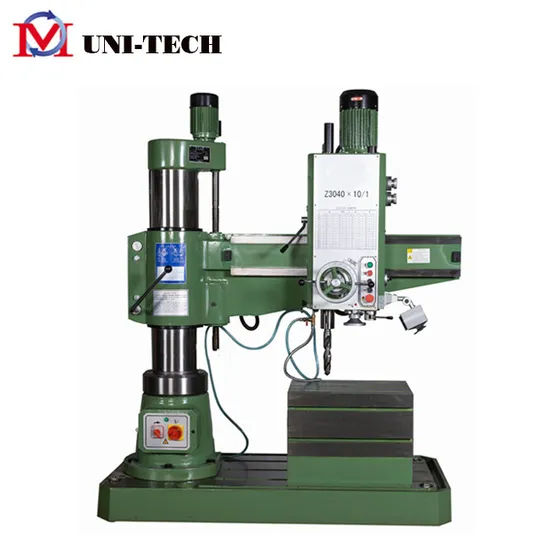

China Industrial Hydraulic Radial Drilling Machine(Z3040X10-1)
Main Features:
Inner-outer column.
Mechnical clamping for the column and Hydraulic Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center. Product Parameters

SPECIFICATION:
Model Z3032/40×10/1 Z3050X12/1
Max.Drilling capacity (mm) 32/40 50
Distance spindle axis to column generating line (mm) 300-1000 320-1250
Diameter of column (mm) 240 350
Spindle taper MT4 MT5
Spindle travel (mm) 280 315
Spindle speeds range (r/min) 32-2500 25--2000
Spindle speeds series 16 16
Range of Spindle feeds (r/min) 0.1--1.25 0.04--3.2
Mpindle Spindle feeds 8 16
Max.Distance spindle nose to working surface of base (mm) 320--900 350-1220
Dimension of worktable (mm) 600X450X450 630X500X500
Dimension of base (mm) 1710X800X160 2050X1000X200
Overall Size (mm) 1760X800X2050 2150X1060X2650
Power of Main motor (kW) 2.2 4
G.W/N.W (kg) 1920/1830 3250/3000
Packing dimension (cm) 187X97X220 240X112X252


Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts


Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun Detailed Photos
