Product Description
Product Description

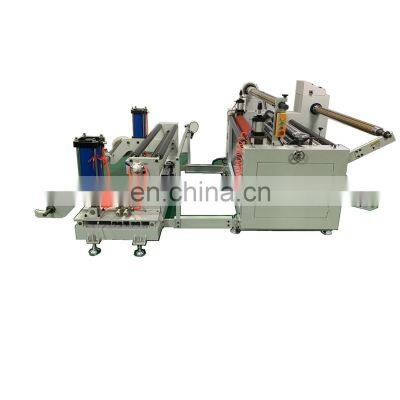

paper slitter machine is suitable for cutting big rolling packaging materials such as paper, paper board, kraft paper, culture paper, printing paper, laser paper, aluminum foil paper, paper, label,sticker, copper foil, aluminum foil,film(OPP, PE, PVC,PP,PC), Non-woven cloth,melt-blown fabric .etc. Widely used in paper industry and printing industry.Stable Performance Paper Roll Slitting Machine with Belt Pulley The slitter is the corollary equipment of automatic die cutting machine, which is suitable for slitting narrow paper web.It has automatic meter count and number count, quantity and length preset and decelerate till stopping functions.Auto Magnetic powder control for unwinding and rewinding.Photoelectric eyes rectification for unwinding, synchronous belt to conveyor in internal structure.Distinctive machine design will improve working efficiency and reduce operation labor intensity , which is the optimal choice for narrow material slitting. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadilyControl Panel: You can set slitting speed,running length,unwinding and rewinding tension on it. It is very easy for worker to operate themachine.Slitting Blades: This machine is standard equipped with full sets of slitting blades, min sltting width is 9mm. if you want to slit smaller width,you can customize self-lock knives. It's easy to adjust the slitting width based on your products.Edge / line Position Controller: These photoelectric sensors are used to guide the rough material to make sure the slittingrewinding effect is good.The photo sensors concentrate on the edge of the material. You can choose between a single sensor and two ModelDP1300DP1600DP1800DP2200MAX Sitting speed150m/min150m/min150m/min80-100 m/minBlades number8pcs10pcs11pcs12pcsRewinding wallboardBoth sideBoth sideBoth sidesBoth sidesMax width of web1300mm1600 mm1800mm2200mmMax unwinding diameter800mm800 mm850mm850mmMax rewinding diameter450mm/600mm500 mm/600mm550 mm/600mm550mm/600mmMin cutting width13.5mm13.5 mm13.5mm13.5mmMax cutting width1300mm1600 mm1800mm2200mmPositioning precision±0.10 mm±0.10 mm±0.10 mm±0.10mmMain motor power3kw/4kw4 kw/5.5kw5.5kw/8.5kw6kw/9kwOverall size2300*2100*1350mm2300*2400*1350mm2300*2600*1380mm2300*2800*1410mmWeight1200kg1500kg1700kg2000kg Details Images Main Features 1. Two winding shafts, more efficency; 2. Air expanding shaft, clamp more tighten, no slippage; 3. Magnetic powder control tension.Tension controllable and output torque balancing by magnetic powder brake actuator; 4. High speed waste material blowing fan; 5. Full rotary slitting blade can be adjusted. 6. Fast closing to knife device, locking upper knife shaft.Air cylinder control the pulling roller up and down. 7. Frequency motor to control speed. 8. 3 inch inflatable unwind shaft and 2 3 inch inflatable rewind shaft. 9.It has the functions of easy operation, high precision, good stability and low noise
>>
