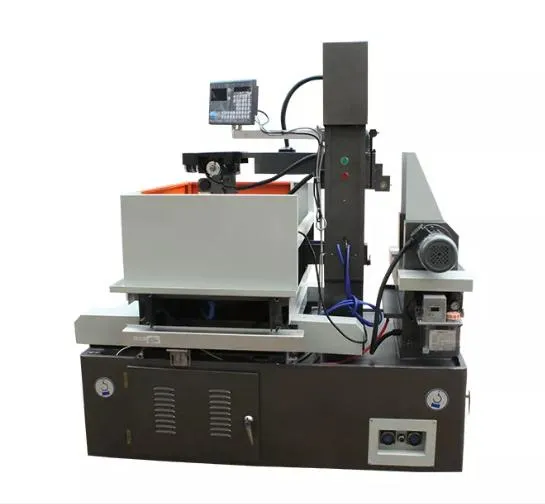

Good Quality CNC Electric Discharge Wire Cutting Machine (Standard)

Product Description

Zhenyue Oem Customized Edm Wire Cutting
Main Feature :
-GTP uses exclusive development of control systems, programming and machine operation is extremely convenient. greatly reducing the time to prepare pre-processing.
-Panasonic inverter.
-Mechatronics compact design and small footprint.
-Motors and automatic clearance compensation screw Direct, reduce the transmission gap.
-High precision optical ruler(1um equiv)in real-time closed control, and has absolute coordinate positioning.
-VLSI, high reliability and easy maintena.

HND400C	PARANETER	Unit
	Electrical Specification
	Input Voltage	V	380
	Max.input Power	KW	<1.5
	Max.output Current	A	6
	Max.material Removal Rate	mm³/min	160
	Best Surface Finishing	um	Ra≤0.8
	Machinery Specification
	Work Table Size	mm	760*480
	Work Table Stroke	mm	500*400
	Max.machining Thickness	mm	450
	Max.workpiece Weight	kg	480
	Max.cutting Width	mm	±3°/150
	Wire Electrode Diameter	mm	0.12-0.2
	Wire Traveling Speed	m/s	0.8-11
	Machining Accuracy	mm	≤0.01
	Machine Weight	kg	1680
	Machine Size(w*d*h)	mm	1530*1830*2080
	Operating Liquid Water-tank	L	100

Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
Ningbo Zhengyue Machinery Co.,Ltd.
ADD: Room 507-508, No.39 Lane 158, Huangcheng West Road, Ningbo China.
Zip Code:315000

---
