Electric Hydraulic Stationary Dock Leveler

Product Description

Product Description

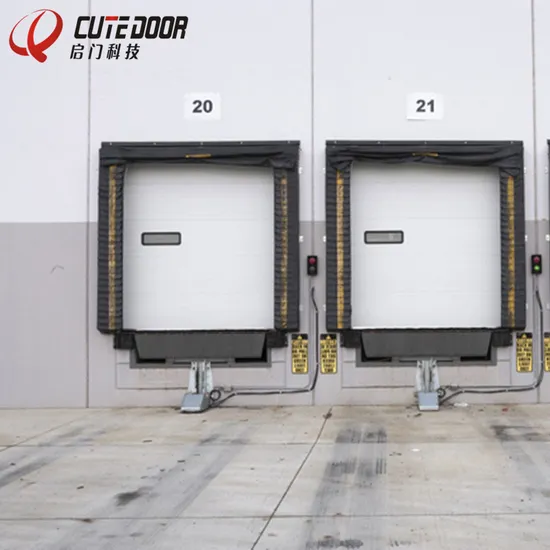

Function of Lifting Platform	The lift platform is mounted on a high platform warehouse for connecting high platform warehouses and wagons.The main function is to eliminate the gap and height difference between the warehouse floor and the truck / container truck.So that forklift can load and unload goods in and out of container.The lifting platform shall be designed to be flexible, light, firm in structure, easy to repair and disassemble, and be able to meet the needs of all-weather continuous operation.
The lifting platform shall include the following components	The frame platform shall be welded from high quality steel produced by Bao steel.The thickness of main panel ≥8mm high strength steel plate. The lower part of the main table shall be standard with no less than 8 12# I-beam (The exact size of the platform depends on the size of the platform)to strengthen, ensure the main strength of the table.
The tongue plate	The tongue plate shall be treated with high quality steel and not allowed to be spliced. Thickness shall be not less than 16mm high strength steel plate, and proper anti slip measures shall be taken.
Hydraulic system	(hydraulic power system, cylinder, control valve, seal) should use high quality products, system stability, low failure rate, easy maintenance, hydraulic system seals must use well-known products.
Surface	surface treated steel parts shall be subjected to strict shot peering, rust treatment and surface treatment. After spraying, the product shall be painted at least 4 times, and the primers shall not less than 2 times, paint film thickness shall not less than 0.1mm, spray paint should be drying treatment.
Safety precautions	The discharge platform shall be equipped with a full range of foot guard plates. The hydraulic system needs to be equipped with an emergency locking device to ensure that the forklift on the lifting platform does not fall during the course of the truck's sudden departure during loading.
The lifting cylinder form can be made according to customer requirements.

Why choose us ?
The company covers an area of 10 acres, plant area of10000 square meters.
Our History:
Predecessor is one of the four biggest rolling shutters factory in China_Zhejiang zhengxing Roller shutter Factory.
Our R & D team:
We have a very professional technical team, have developed a large number of product patents.
F A Q:
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 15 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.

---
