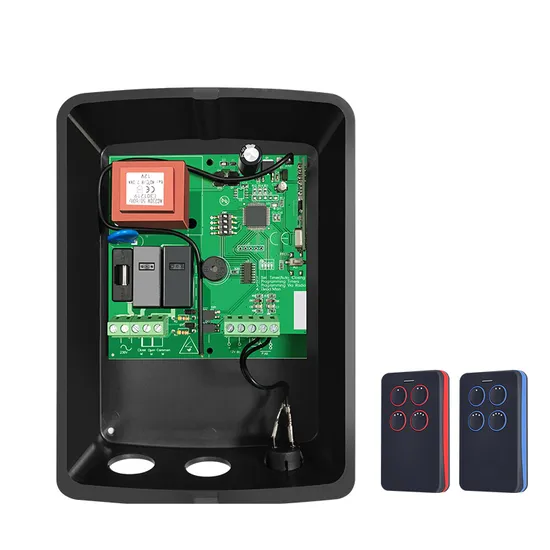

AC230V/AC110V Central Motor Remote Controller Board

Product Description

AC230V/AC110V Central Motor Remote controller board Product Parameters Controller:

Input Voltage	AC 200-250V 50HZ-60HZ	Motor Voltage	AC 200-250V 50HZ-60HZ
Protective Tube	250V 10A	Output Power	200W
Working Temperature	-20-65 Degree	Support	Standard EV1527 and JUHUI HCS 301 REMOTE

Remote Control:

Working Voltage	6V	Working Current	≤ 15mA
Working Frequency	433mhz	Working Temperature	-20-65 Degree
Remote Distance	≤50m

Product Description THis controller board was widely used in Roller Shutter Central Motor, Tubular Motor, it with the main function as below:
Main Function:
1. Linkage and inching switching over
2. One button and Multi-button Control
3. Change Motor Direction
4. Limit study mode
5. Auto closing time setting

Detailed Photos
Certifications
Company Profile
Quanzhou Juhui Electronic Co., Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator). We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request . We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
FAQ
1.What frequency do you need?
433.92 Mhz or 315 Mhz
2.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc.
learning code: PT2240, EV1527 etc.
fixed code :SC2260 , SC2262, etc.
3. How can i pay for products?
Payment: T/T ,Paypal ,Western Union.
4. Do your products carry warranty?
Yes, 6 month or more and permanent service.
5. How do i purchase more than 1 remote?
Please contact with me,we offer samples to test before ordering.

---
