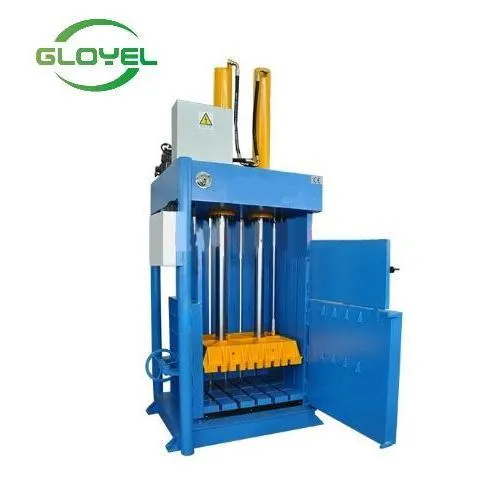

Vertical Press Plastic Baling Machine Waste Paper Hydraulic Baler Cardboard Press Carton Compactor for Sale

Product Description

Vertical Press Plastic Baling Machine Waste Paper Hydraulic Baler Cardboard Press Carton Compactor For Sale
Product Description

1. Introduction of baler: * Suit for compress hard plastic, sponge, fiber, can etc. * The machine use double cylinder balance compression, special hydraulic system, more stable. * High load structure, automatic bales out device, safe and reliable. * Using rectangular door opening type, the bale can be trapped in "#" shape. * Adopt England brand sealing parts; improve the life time of oil cylinder. * Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon. * Adopt Taiwan brand superposition type valve group. * Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.

Product Parameters

Model	LBA080T60	LBA080T80	LBA080T100	LBA080T120
Hydraulic Power(Ton)	60	80	100	120
Bale Size(L*W*H) mm	1000*1000*(400-900)	1000*800*(500-1000)	1000*800*(500-1000)	1000*800*(500-1000)
Feed opening Size(L*H)mm	1100*500	1000*500	1000*500	1000*500
Chamber Size(L*W*H) mm	1000*1000*1500	1000*800*1500	1000*800*1500	1000*800*1500
Output(Bales/hr)	3-6	3-6	3-6	3-6
Power(KW/HP)	7.5KW	11Kw/15Hp	15Kw/20Hp	18.5Kw/25Hp
Machine size(L*W*)mm	1700*1450*3500	1700*1450*3500	1700*1450*3500	1700*1450*3500
Machine Weight(KG)	2300	2800	3200	3400

Application Range
More pictures
More Different Type

Related product
Large-scale Vertical Four-side Door Opening Type Balers
This model is designed for pressing and packaging materials with higher rebound force including rigid plastics,PET bottles, hay,fibers,sponges,cloths and others.
Heavy-duty vertical hydraulic baler with double-cylinder balance compressing design, and extraordinary hydraulic system to provide continuous stable force during compression. It generates greater compression force to bale larger loads, four sides opening style with"#" shape strapping capability,also allows the materials to be packaged before strapping. Chamber anti-rebound device can be optionally installed.
Technical Parameter

Model	LBA070T80	LBA070T120	LBA1010T160
Hydraulic Power(Ton)	80	120	160
Bale Size(L*W*H) mm	1000*700*(500-900)	1000*700*(500-900)	1100*1000*(400-1200)
Feed Opening size(L*H)mm	1000*500	1000*500	1100*800
Chamber Size(L*W*H)mm	1000*700*1500	1000*700*1500	1100*1000*2000
output(Bales/hr)	4-6	4-6	4-6
Voltage(Customizable)(/Hz)	380/50	380/50	380/50
Power(KW/HP)	11/15	15/20	30/40
Machine Size(L*W*H) mm	1800*1480*3500	2100*1700*3500	2100*1800*4600
Machine Weight(KG)	2600	3200	6000

Workshop Scene
Packaging & Shipping
Company Profile
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea.
