Diamond Like Carbon (DLC) Coating Equipment

Product Description

Product Description

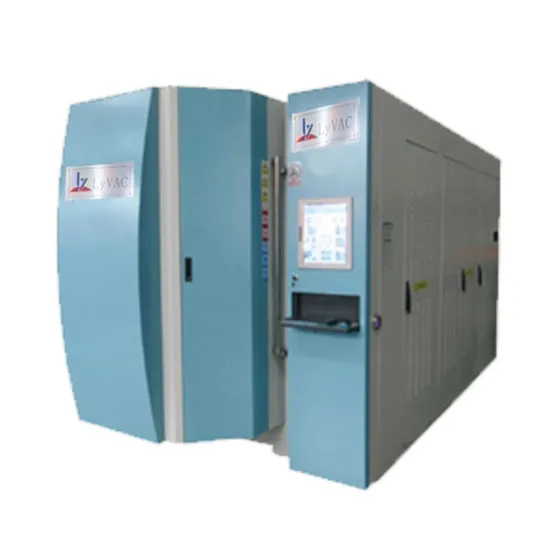

Special coating machine for DLC coating
DLC coating, full name Diamond-Like Carbon coating, is a special surface coating with diamond-like properties, such as high hardness, smoothness and chemical inertness. This coating is mainly composed of carbon and hydrogen and is applied to the surface of various materials through physical evaporation deposition or chemical vapor deposition.
DLC coatings are widely used in many fields due to their excellent properties, including industry, medical devices, automobiles, and electronic equipment.
The development of DLC coating has gone through the stages from the first generation of TiN to the second generation of TiCN, TiC, the third generation of DLC, and finally the fourth generation of cubic boron nitride. In the 1970s, German scientists used ion beam deposition to deposit single-valent carbon ions onto a substrate at room temperature to produce DLC thin films.
Equipment features
Equipment features:The equipment has the advantages of quick pumping , strict control of process temperature, fast deposition, and good process repeatability. Function description
Function description:Coat hard lubricating coatings on the surfaces of various taps, dies, bearings and other hard parts.Reduce the friction coefficient of parts and increase tool service life. Equipment specifications
Equipment specifications: customized according to user requirements, more suitable for user needs.
DLC lubricating coating, DLC coating has a low friction coefficient, can reduce the friction and wear between the material and other surfaces, has excellent sliding performance under lubrication conditions, reduces energy loss and heat generation, and improves the efficiency and durability of the system

Our DLC coating technology can significantly increase the surface hardness of the tool, with a hardness close to 2200-4000HV. This high hardness helps to improve the wear resistance and durability of the tool.
Product Parameters

Technical data	LY0506	LY1011	LY1212
Pumping speed (no load clean)	5.0x10-3<10min	5.0x10-3<10min	5.0x10-3<10min
Ultimate vacuum (Pa)	2.0x10-4 Pa	2.0x10-4 Pa	2.0x10-4 Pa
heating power (Kw)	27KW	27KW	27KW
Total power(kw)	40kw	50kw	65kw
water cooling temperature	<25ºC	<25ºC	<25ºC
Number of plane targets	2 stes	2-3 sets	2-3 sets
Water cooling flow	20T/h	20T/h	20T/h

---
